5. Loosen the intake hose clamp (Item 2, Figure 4–22) at the top of the fuel lter
assembly (Item 1, Figure 4–22). Slide the clamp along the fuel line (Item 3, Figure
4–22) away from the fuel lter assembly.

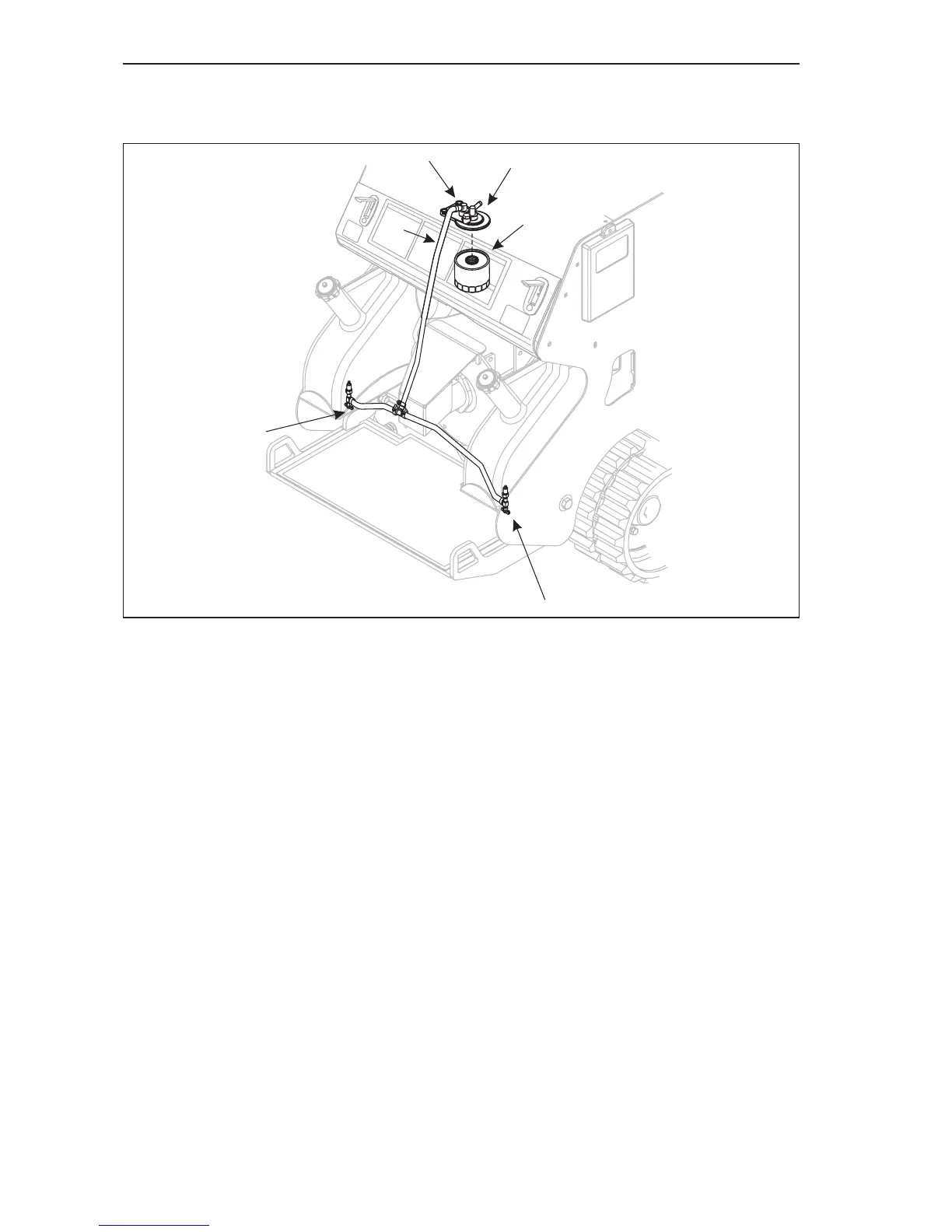

Figure 4-24 Fuel Filter
6. Pull the fuel line off the fuel lter assembly and place the line in a suitable sized
container.
NOTE:
a. Each of the fuel tanks holds approximately 4.5 gallons of fuel.
b. Make sure that the fuel hose is positioned lower than the fuel valves to make sure that
all fuel is drained from the tanks.
7. Open the fuel valves on the bottom of each tank and allow the fuel to drain into the
drain pan.
8. Install a new spin on fuel lter (Item 4, Figure 4–24) as described earlier in this
section.
NOTE:
• The used fuel lter will be lled with diesel fuel. Make sure to drain the fuel from the
lter into an appropriate container.
• Dispose of the used fuel lter in an appropriate manner and according to State and Local
regulations.
9. Install the fuel line onto the fuel lter assembly.
10. Secure the fuel line onto the fuel lter assembly using the spring clamp removed
earlier.
