BOXER 700HDX - Page 78

Routine Service and Maintenance
4.25

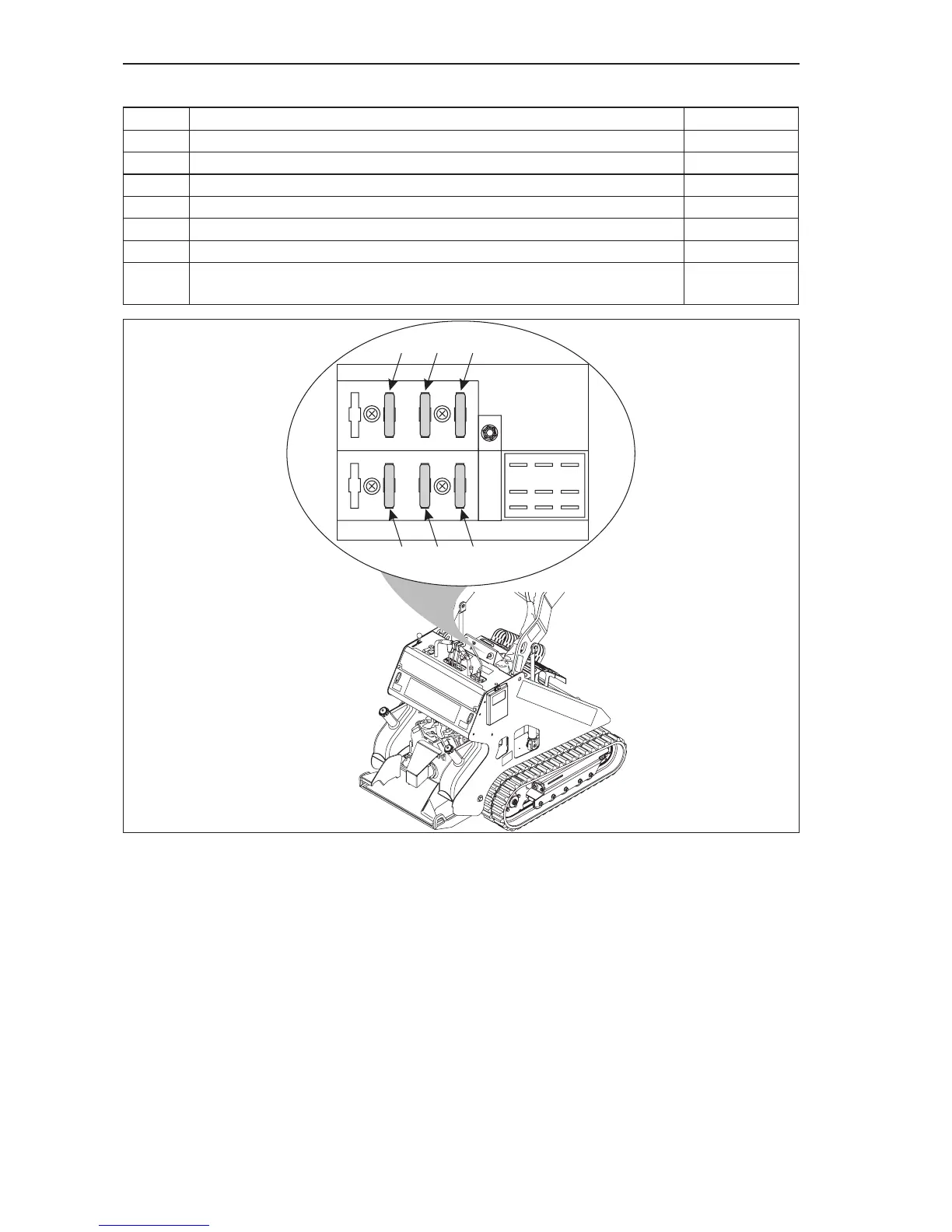

Figure 4-25 Fuse Panel
15
15
1
3
3
6
43
512
1
All fuses and their locations are shown in illustration Figure 4–25.
Fuse Circuit Amp Rating
1 Voltage Regulator 3
2 Crawl Speed Solenoid 3
3 Hydraulic Oil Cooler Fan 15
4 Fuel Solenoid 15
5 Hour Meter 1
6 Indicator Gauges 1
7 In-line Starter Solenoid Fuse (not shown in illustration - located in the RED
power line between the ignition switch and the starter motor.)
30
