Routine Service and Maintenance
4.28

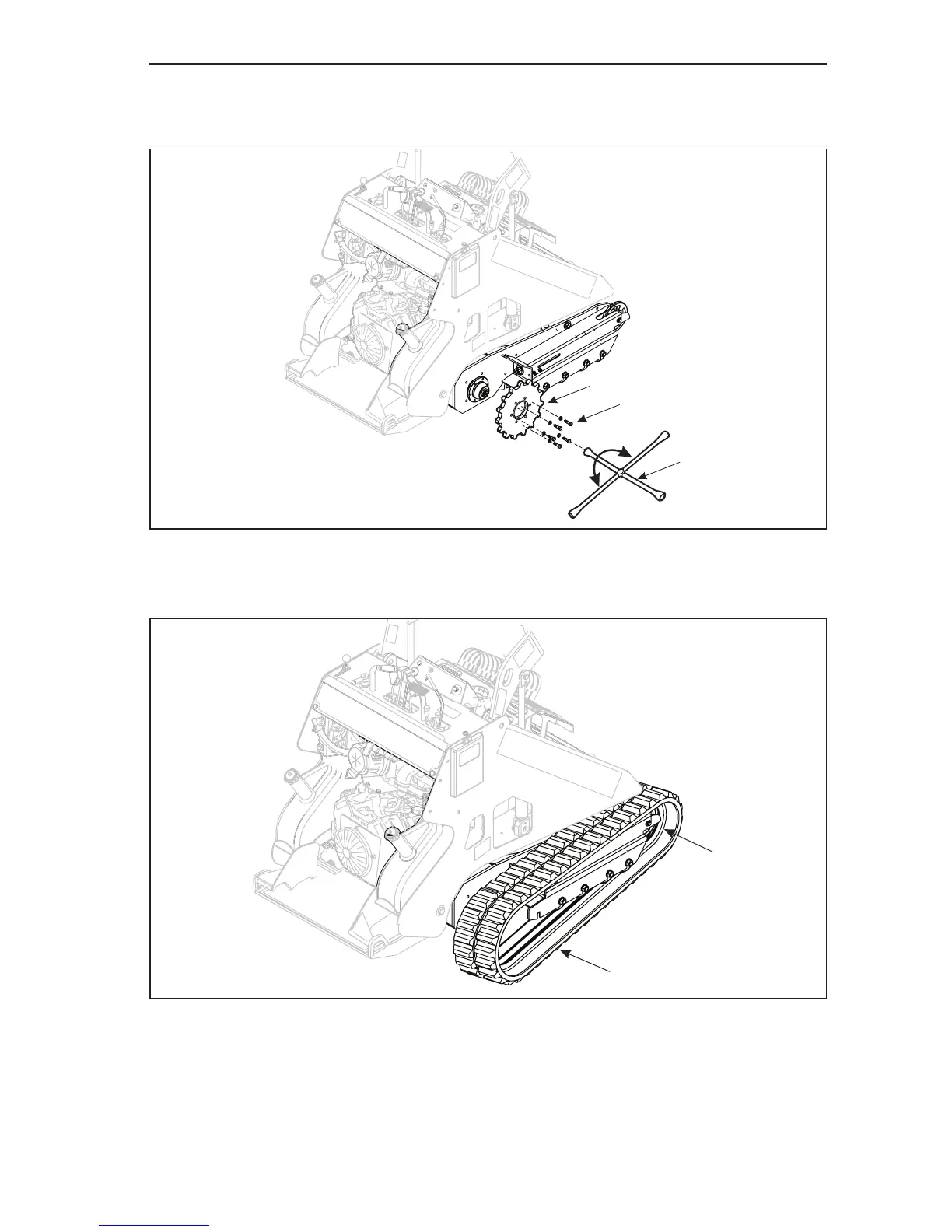

11. Using a ¾” wrench (or tire cross) (Item 1, Figure 4–29), remove the 6 bolts (Item
2, Figure 4-29) securing the drive sprocket (Item 3, Figure 4–29) to the drive
motor.
Figure 4-29 Remove Drive Sprocket
12. Slide the track (Item 2, Figure 4–30) on the front idler wheel (Item 1, Figure 4–30)
making sure that the track lugs are on each side of the idler wheel.
Figure 4-30 Install track onto front idler wheel
3
2
1
2
1
