Routine Service and Maintenance
4.30
NOTE: Tighten the bolts evenly around the drive sprocket.
17. Rotate the tension bolt (Item 3, Figure 4–33) COUNTER CLOCKWISE until the
correct track tension is set. See Track Tensioning earlier in this manual.

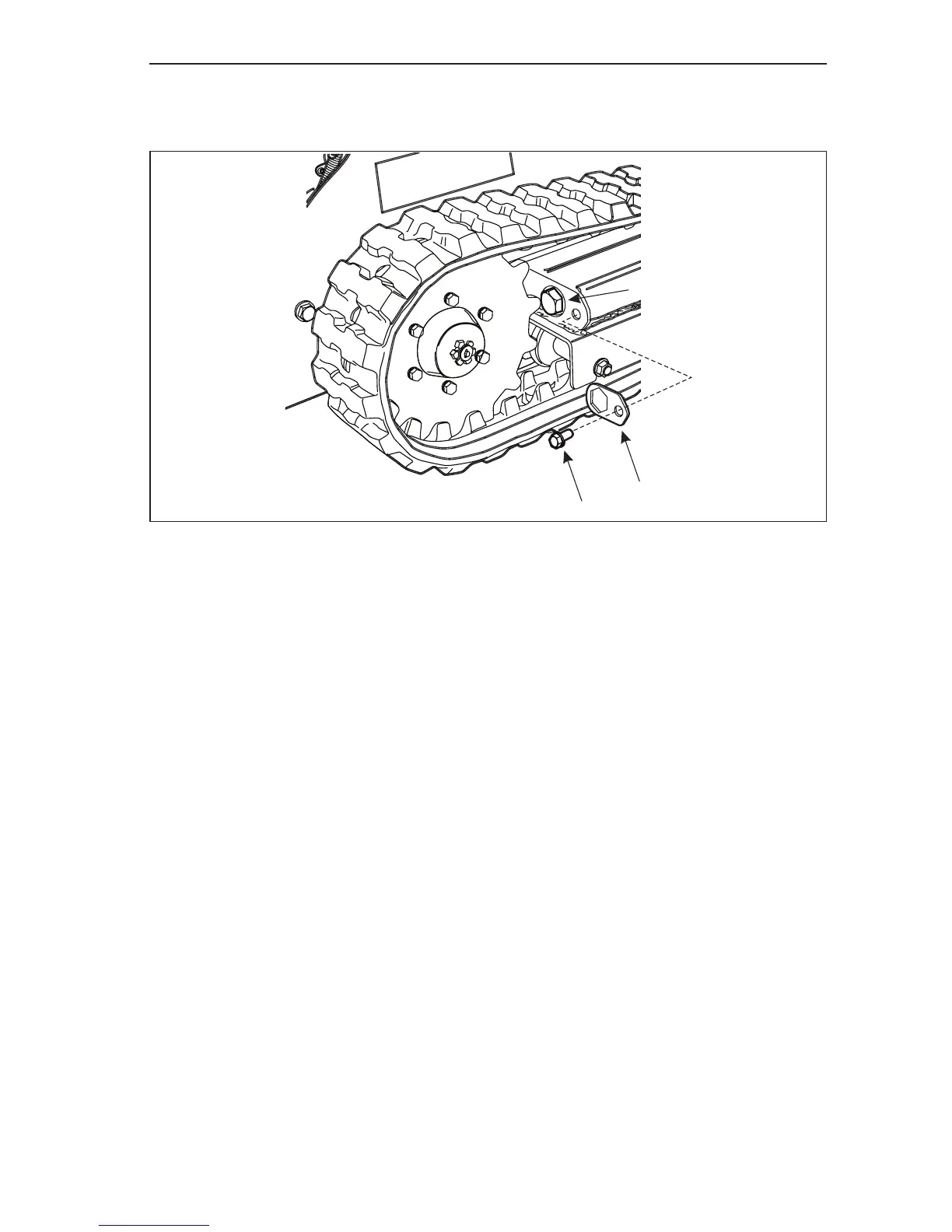

Figure 4-33 Set Track Tension
18. Set Track Tension. Start the engine and slowly rotate the track forward and
backward to make sure that the track is properly seated on the drive sprocket.
19. Fully rotate the track forward and backward several times.
20. Shut off the engine.
21. Double check track tension. Adjust as needed.
22. Install track tension bolt lock plate (Item 2, Figure 4–33) and secure it with the
lock bolt (Item 1, Figure 4–33).
23. Return the machine to service.
3
2
