Edition 06/10 User Manual 5
BP-PR PLUS Series
1-4 Parts of the Printer
i
The following illustrations show the important parts for the example using the printer
with internal rewinder (peel-off version). The details of other printer versions may
vary. Major differences are indicated in the following.

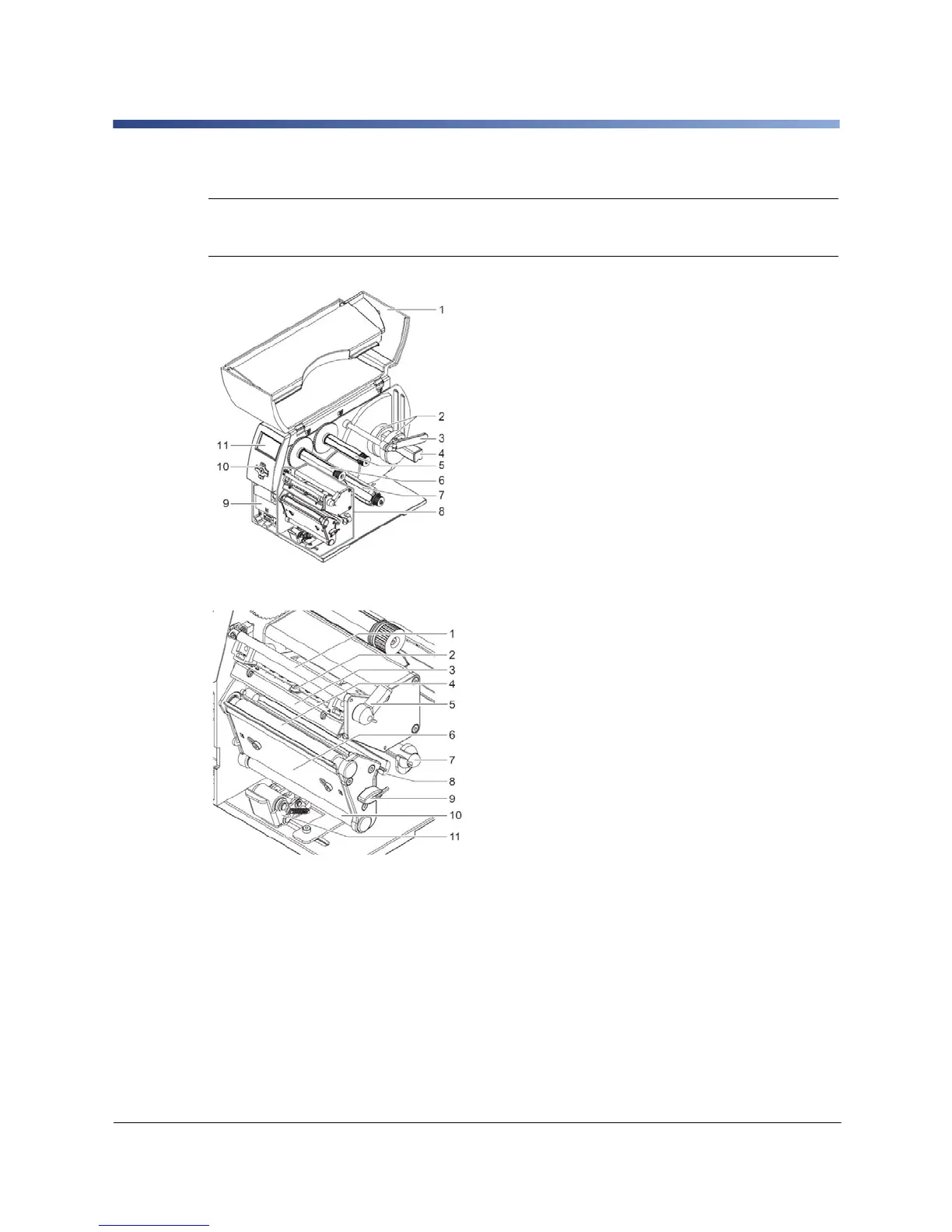

Figure 1. General Overview
1 Cover
2 Core Adapter
3 Media Retainer
4 Media hub
5 Transfer ribbon supply hub (transfer printers only)
6 Transfer ribbon take-up hub (transfer printers only)
7 Internal rewinder (peel-off version only)
8 Print unit
9 Mounting surface for accessories incl.
peripheral connection
10 Navigator pad
11 LCD display
Figure 2. Print unit for Tear-off mode
1 Transfer ribbon deflector
2 Printhead securing screw
3 Printhead mounting bracket with printhead
4 Print roller
5 Lever for locking printhead
6 Dispense plate
7 Axis with ring
8 Label sensor
9 Allen key (hexagonal wrench)
10 Rewind assist roller (peel-off version only)
11 Locking system (peel-off version only)
