10 User Manual Edition 04/10
BP-PR PLUS Series
2 Connecting Printer to Computer
You can choose from the following options for connecting a computer to the printer:
• Direct connection to the serial RS-232 interface (8) (see 2-1 Connecting Printer via
Serial RS-232 Interface on page 11).
• Direct connection to the Ethernet interface (5) (see 2-2 Connecting Printer via
Ethernet Interface on page 12).
• Connection via a computer network to the Ethernet interface (5) (see 2-2
Connecting Printer via Ethernet Interface on page 12).
• Direct connection to a high-speed USB slave interface (7) (see 2-3 Connecting
Printer via USB Interface on page 14).

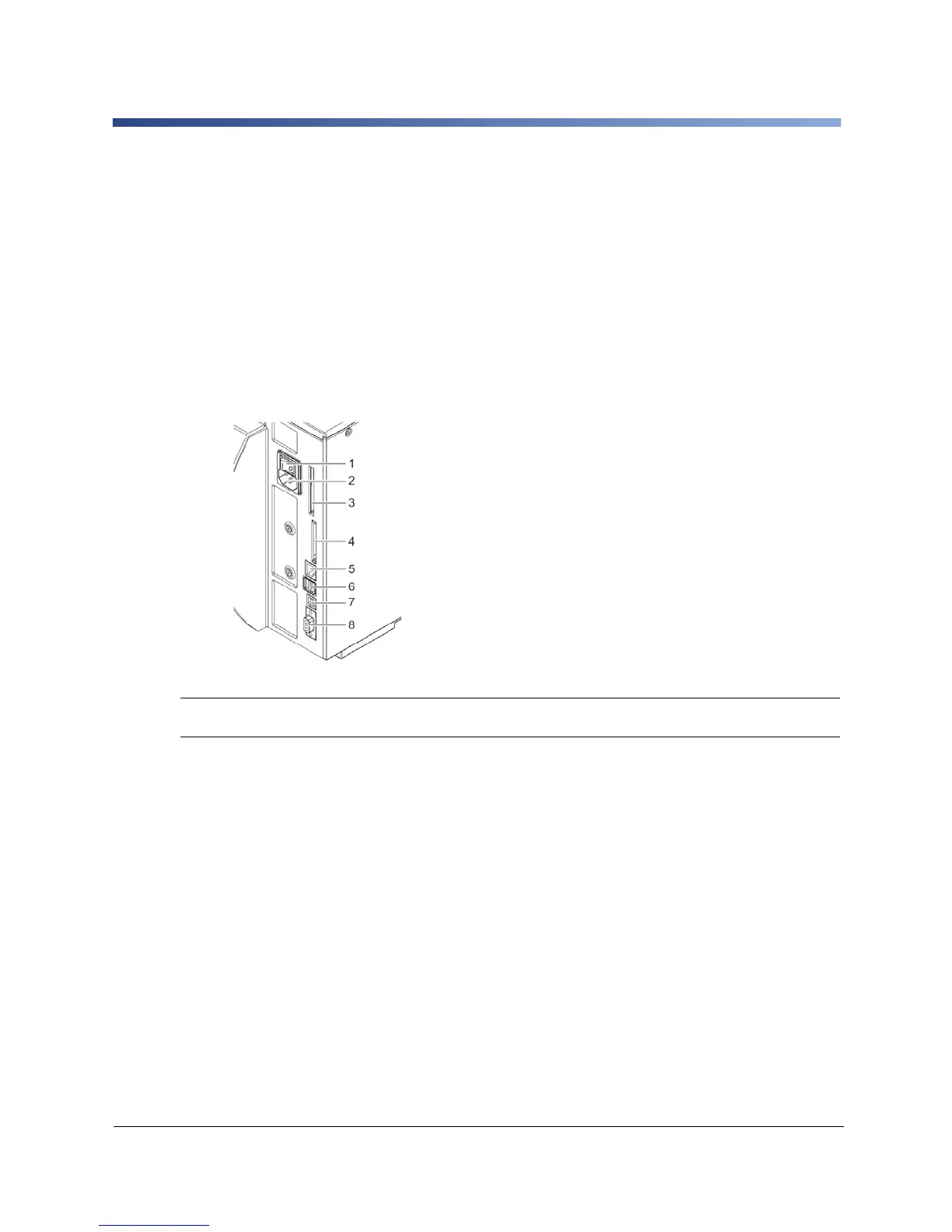

Figure 4. Power and computer connections
1 Power switch
2 Power connection jack
3 Slot for type II PC card
4 Slot for a CompactFlash memory card
5 Ethernet 10/100 Base-T
6 Two USB master interfaces for keyboard,
scanner or service key
7 High-speed USB slave interface
8 Serial RS-232 C interface
i
Insufficient or missing grounding can cause faults during operation.
Ensure that all computers and connection cables connected to the printer are grounded.
