Brady i5100 - Printer and Sensor Dimensions

BradyPrinter i5100 37

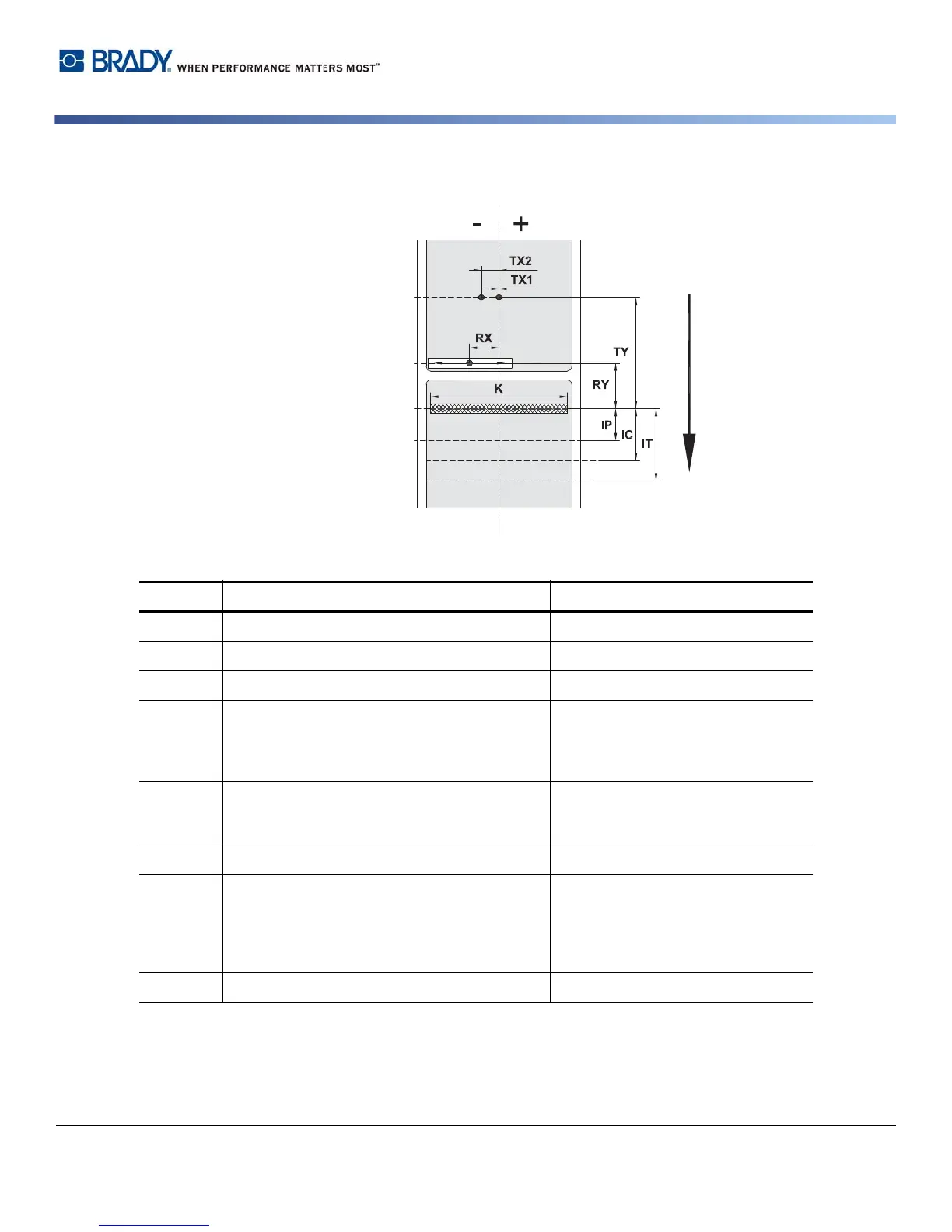

Printer & Sensor Dimensions
Callout Description Dimensions
IP Distance printhead to peel off edge (13.2 mm)
IC Distance printhead to cut edge (17.5 mm)
IT Distance printhead to tear bar (24.0 mm)
K Print width
with printhead 4.3/300
with printhead 4.0/300
with printhead 4.0/600
(108.4 mm)
(105.6 mm)
(105.6 mm)
RX Distance reflective sensor to middle of paper track
i.e. permissible distance of reflex or cut-out marks
from the middle of the material
(-56 - +10 mm)
RY Distance reflective sensor to printhead (16.0 mm)
TX Distance gap sensor to middle of paper track
TX1: Sensor for single and multi-lane labels with
an odd number of lanes.
TX2: Sensor for multi-lane labels with an even
number of lanes.
0
(-10 mm)
TY Distance gap sensor to printhead (56.5 mm)
Gap sensors
Reflective sensor
Printhead
Peel off edge
Cut edge
Tear bar
Feed direction
