10 • Media Size Specifications

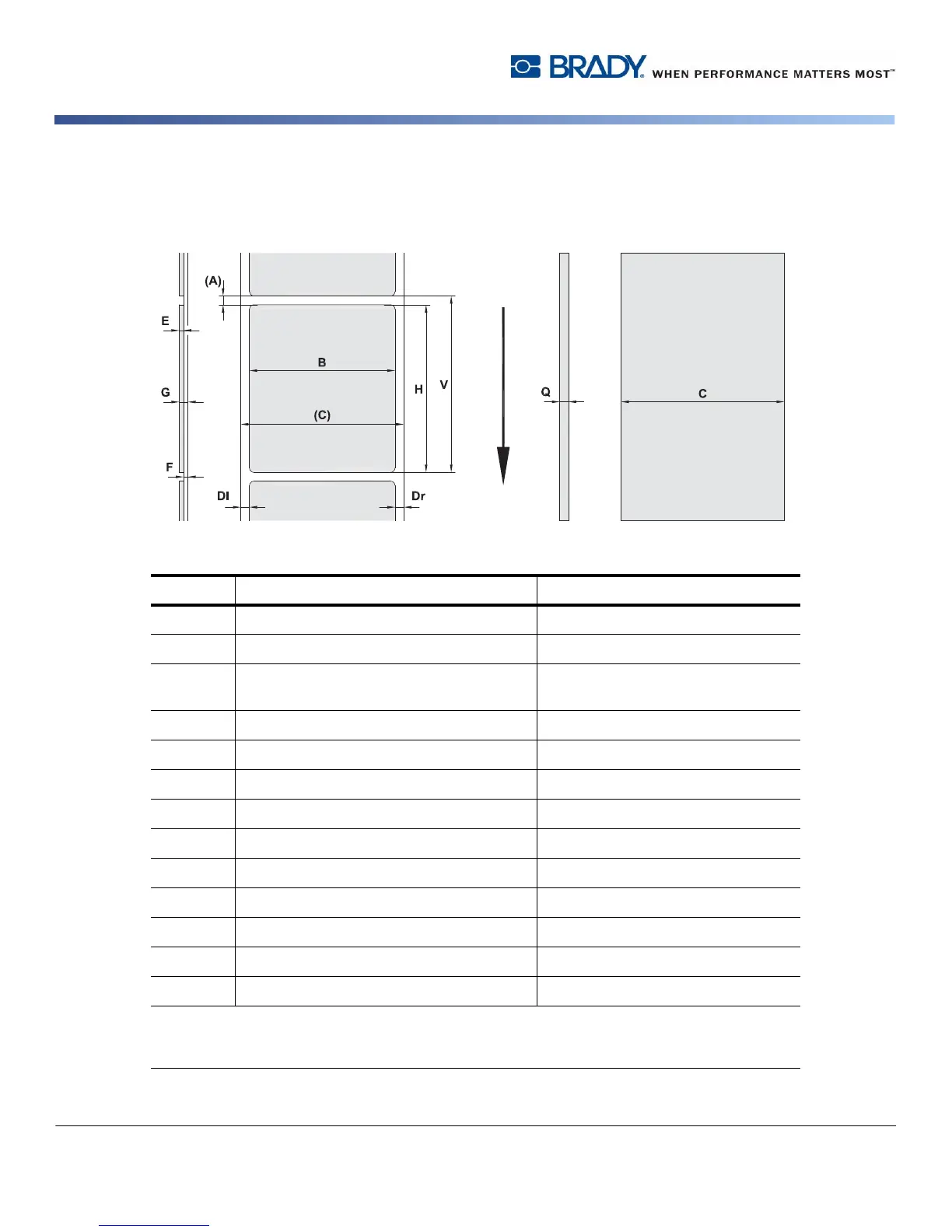

Label/Print Media Dimensions
Callout Description Dimensions
C Media width (cross-web including liner) (25 - 120 mm)
B Label width (cross-web) (6 - 116 mm)
H Label length (down-web)
in peel-off mode
(5 - 2000 mm)
(20 - 200 mm)
- Tear-off length (30 mm)
- Cut length (12 mm)
A Label distance (2 mm)
DI Left margin ≥0
Dr Right margin ≥0
E Label thickness (0.025 - 0.7 mm)
F Liner thickness (0.03 - 0.1 mm)
G Thickness label with liner (0.055 - 0.8 mm)
Q Thickness continuous material (0.03 - 0.8 mm)
V Label feed (>7 mm)
• Small label sizes, thin materials or strong glue can lead to limitations.
Critical applications need to be tested and cleared.
• Note the bending stiffness! Material must be flexible to follow the radius of the print roller!
