Brainchild P91 - Page 33

53 mm
Panel
92
m
m
92 mm
Panel Cutout
P41

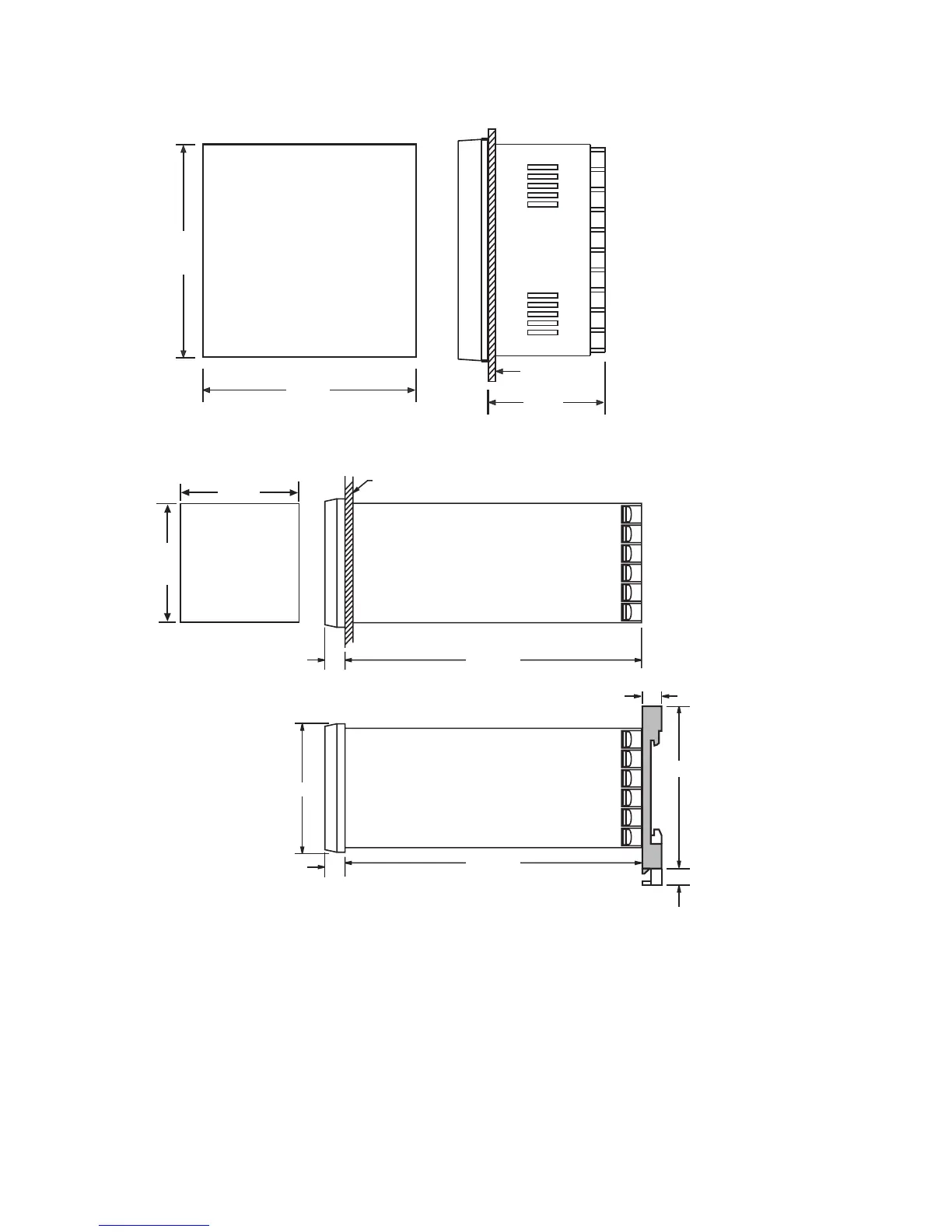

Figure 2.1 Mounting DimensionsFigure 2.1 Mounting Dimensions
UM0P411A
33
P91
45 mm
45 mm
Panel
Cutout
104.8mm
Panel
11.5mm
Panel MountPanel Mount
104.8mm
11.5mm
62.0mm
6.5mm
7.5mm
48.0mm
P91
Rail MountRail Mount
