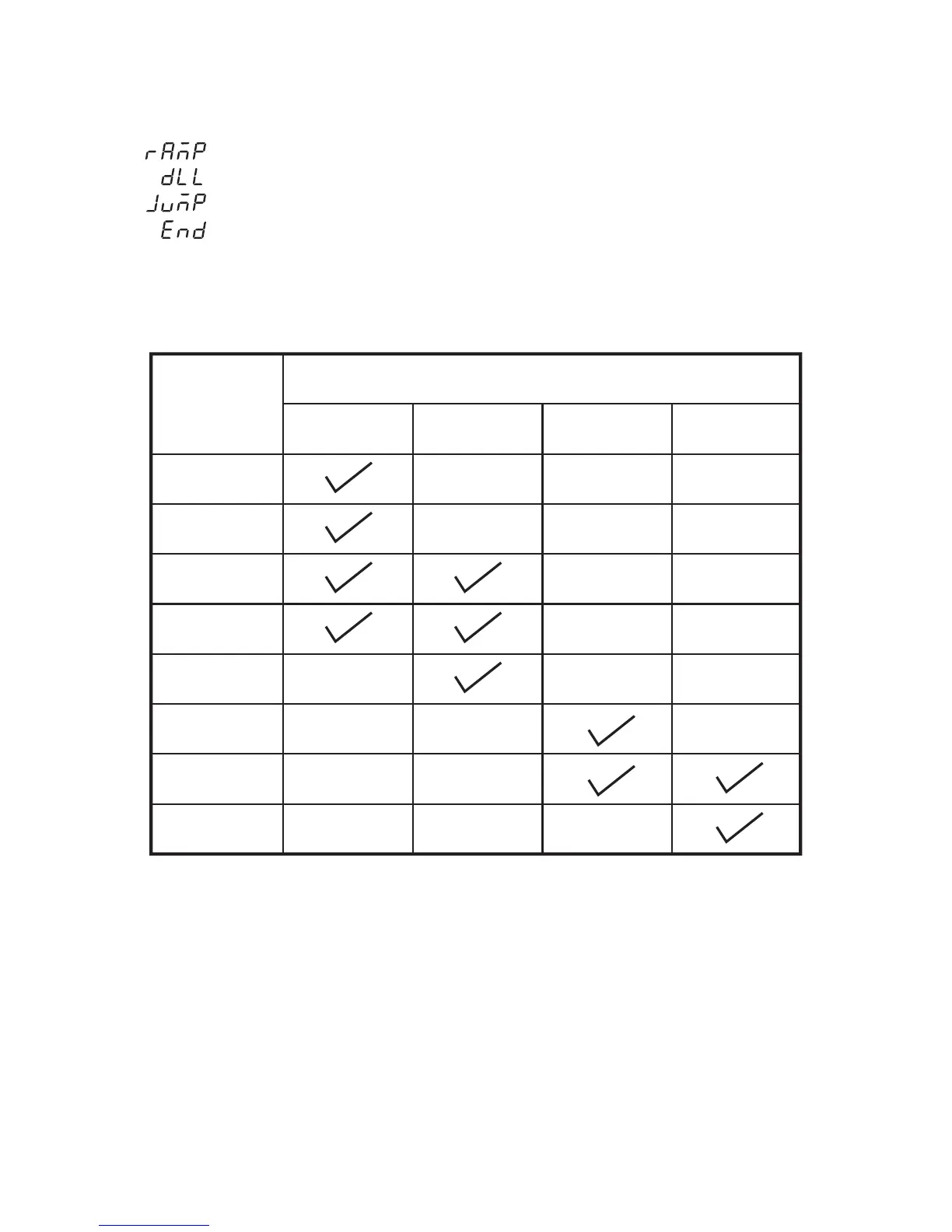

The next parameter is segment type (SGTY). there are four different
segment types, these are
: Ramp to a new set point at a set rate or in a set time
: Dwell for a set time
: Jump to a specified segment in the same profile
: Make this segment the end of the profile
The parameters that follow SGTY (segment type) depend on the type of
segment selected as shown in the table below. The function of each
parameters follows the table.
Parameter
Segment type (SGTY) selected
0 RAMP
1 DLL
2 JUMP 3 END
TGSP
RTRR
P2EV
HBTY
DLLT
SEG
CYCL
FSP
Table 4.3 Parameters that follow segment typeTable 4.3 Parameters that follow segment type
Suppose that you need a profiler to control a process .The response of
the profiler must be same as the figure shown below.
UM0P411A
74
