There are five types of control modes can be configured as shown in
Table 3.2.
3-4 Control Outputs3-4 Control Outputs
: Don't care
:Required to adjust if ON-OFF control is configured.
Control
Modes
OUT1 OUT2 O1HY A1HY CPB
DB
Heat only
Cool only
Heat: PID
Cool: ON-OFF
Heat: PID
Cool: PID
Heat: ON-OFF
Cool: ON-OFF
:Adjust to meet process requirements

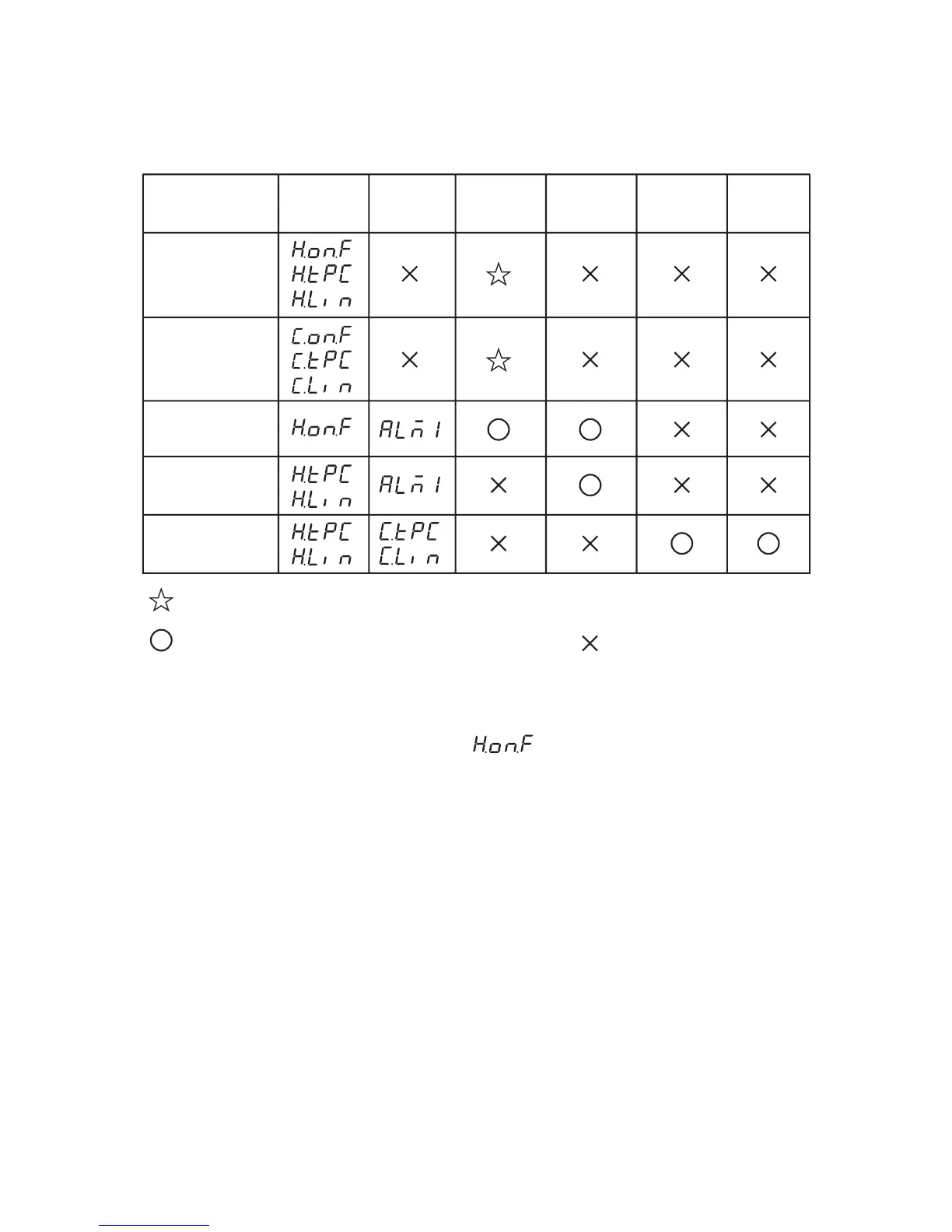

Table 3.2 Heat-Cool control configuration valueTable 3.2 Heat-Cool control configuration value
Heat Only ON-OFF Control : Select for OUT1 and O1HY is used
for adjusting the dead band of ON-OFF control. The heat only on-off
control function is shown in the following diagram.
Heat Only ON-OFF Control : Select for OUT1 and O1HY is used
for
adjusting the dead band of ON-OFF control. The heat only on-off
control
function is shown in the following diagram.
UM0P411A
46
