3 - 15 Output Scaling3 - 15 Output Scaling

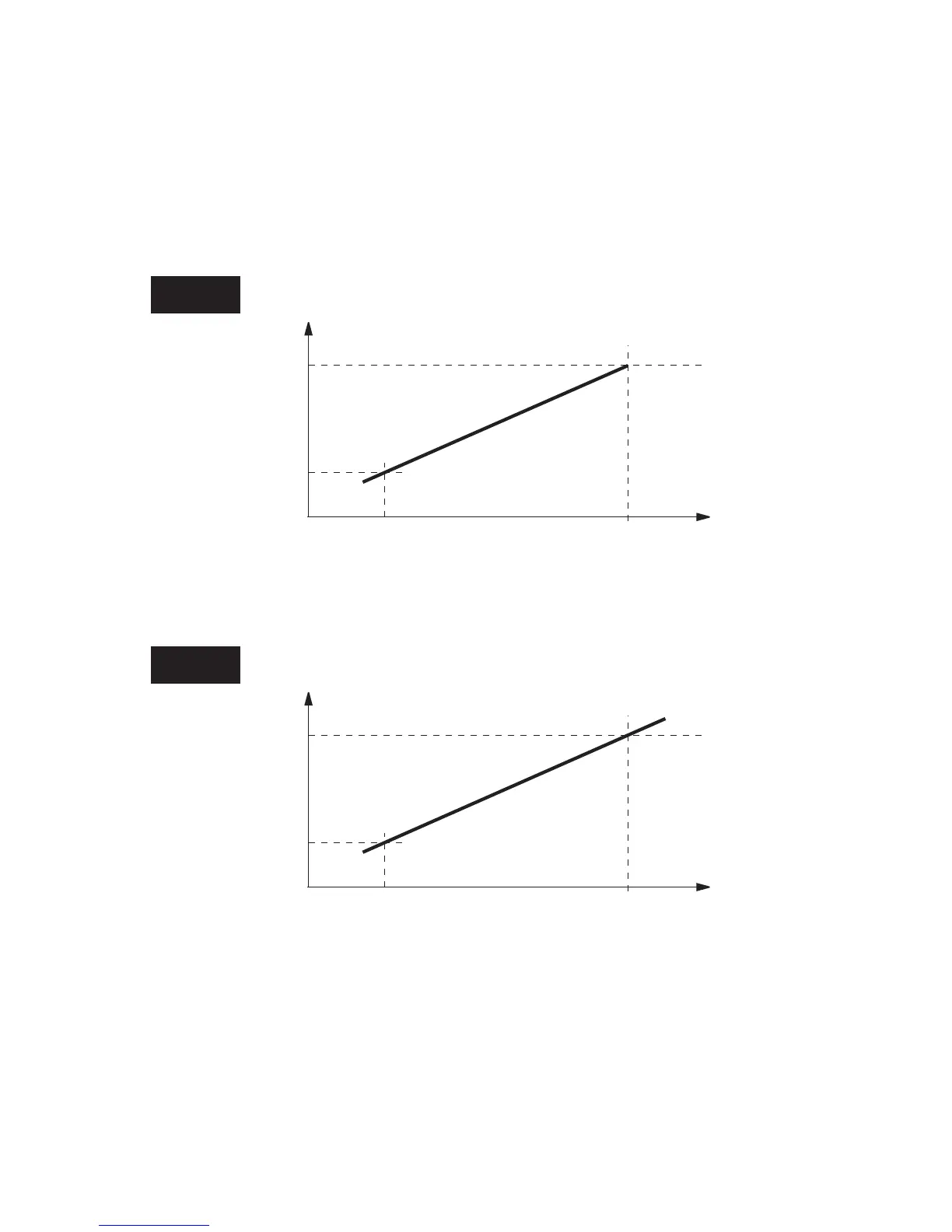

The output scaling can be applied to the cases of linear output (case 1 in
Fig. 3.12 ) and retransmission (case 2 in Fig. 3.12 ). The Out.L in Fig. 3.12
may be 0 mA, 0V, 1V or 4mA, and out.H may be 20mA, 5V or 10V according
the output module installed.
0%
MV1 or
MV2
Electrical
Output
100%
Out.L
Case 1Case 1
Out.H
Low
Retransmission
PV or SV
Electrical
Output
High
Out.L
Case 2Case 2
Out.H
Figure 3.12 Output scaling function
Figure 3.12 Output scaling function
