• In th i s c ase , t he f re e pl ay o f
the brake peda l is 0.2~0.4 in
(5~10mm).
• Adjust both of the brake pedals.
PLAY

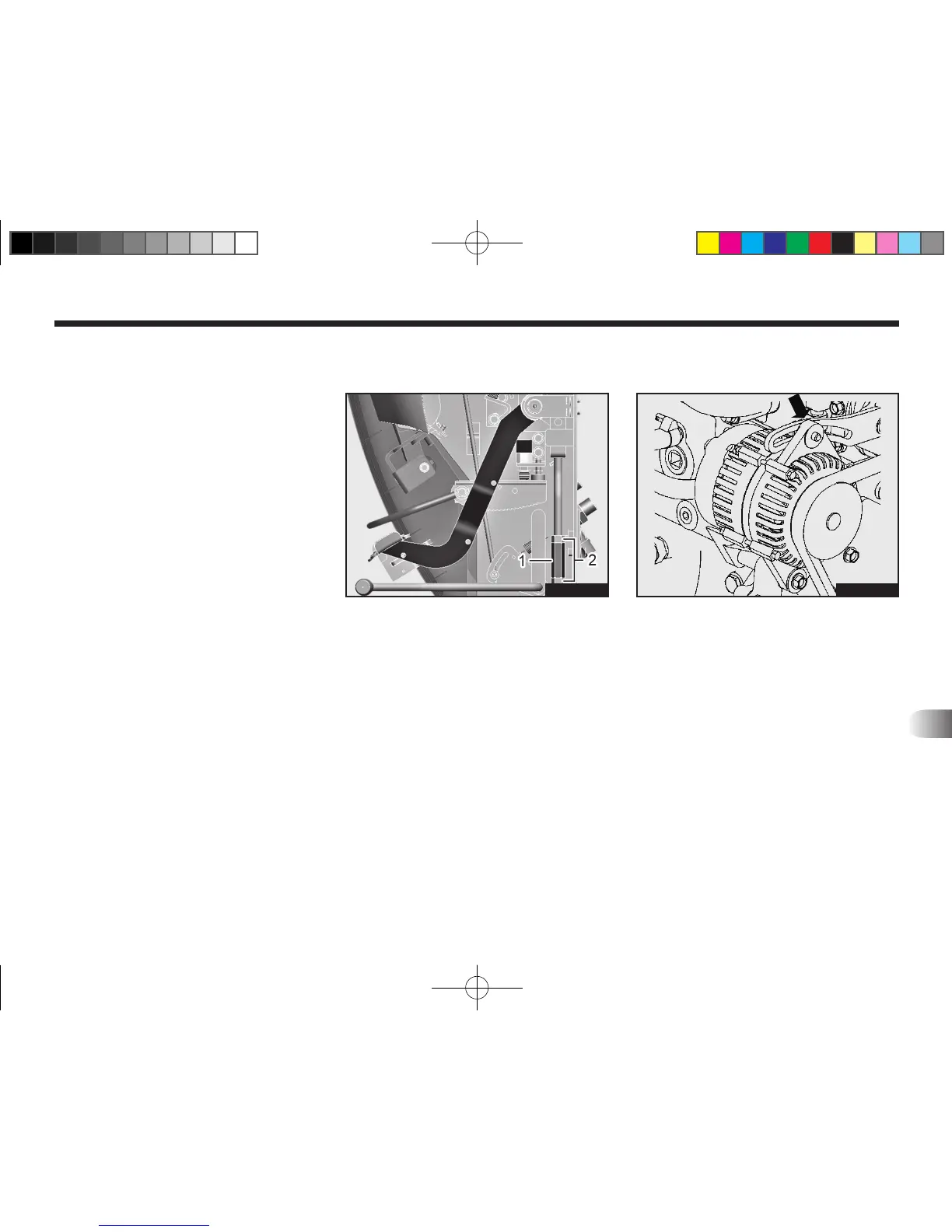

1. Remove dashboard.
2. Loosen xing nut.
3. Adjust the brake rod to adjust the
gap.
4. Tighten the xing nut.
(1) Brake Rod
(2) Nut
LXN5O723A LXN5O724A
FAN BELT
Open the engine hood and press the
middle of fan belt with finger to see
if the belt sags about 0.4 ~ 0.6 in or
if there is any damage to the belt. If
the sagging is not correct, loosen the
generator bolt and move the gener-
ator to adjust the tension of the fan
belt. If the fan belt still slips after the
generator is moved to the maximum,
replace the belt with a new one.
New belts must be inspected after 50
hours of use.
