4
-
22
BRANSON K SERIES

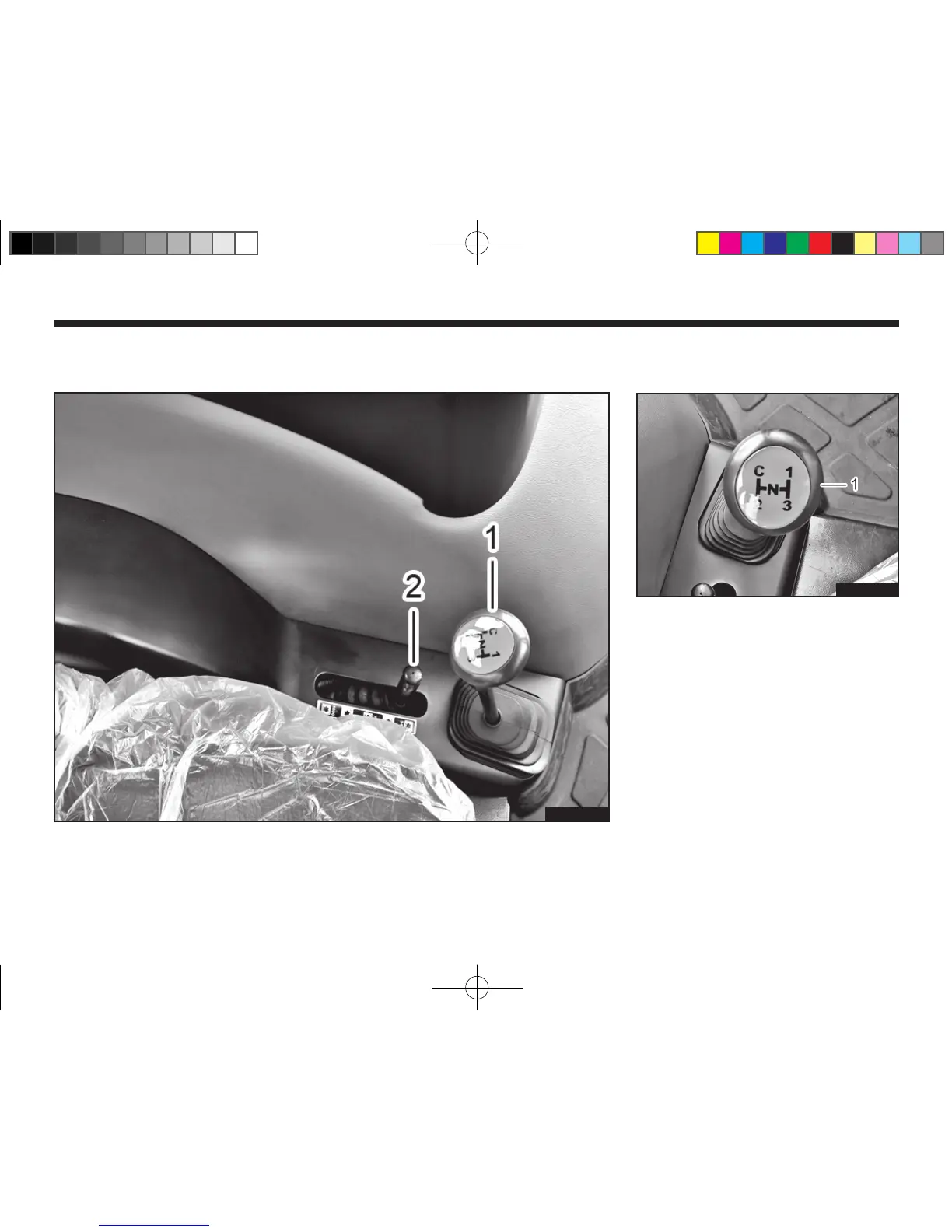

RANGE GEAR SHIFT LEVER
The range gear is shifted in four
levels(C-1-2-3). The combination
with the main gear provides 16 level
of gear shifting.
When shifting the range gear, de-
press clutch fully
(1) Range Gear Shift Lever
LXN5O447a
LEVER OPERATION (L)
(1) Range Gear Shift Lever (2) PTO Shift Lever (3) Parking Brake Lever
LXN5O446a
BRANSON K SERIES 트랙터-영문판-04.indd22 22 2014-09-02 오후 7:15:43
