FUNCTIONS
4
MAIN KEY SWITCH
"OFF"
The engine is stopped, and current
does no ow. (The key can be taken
out)

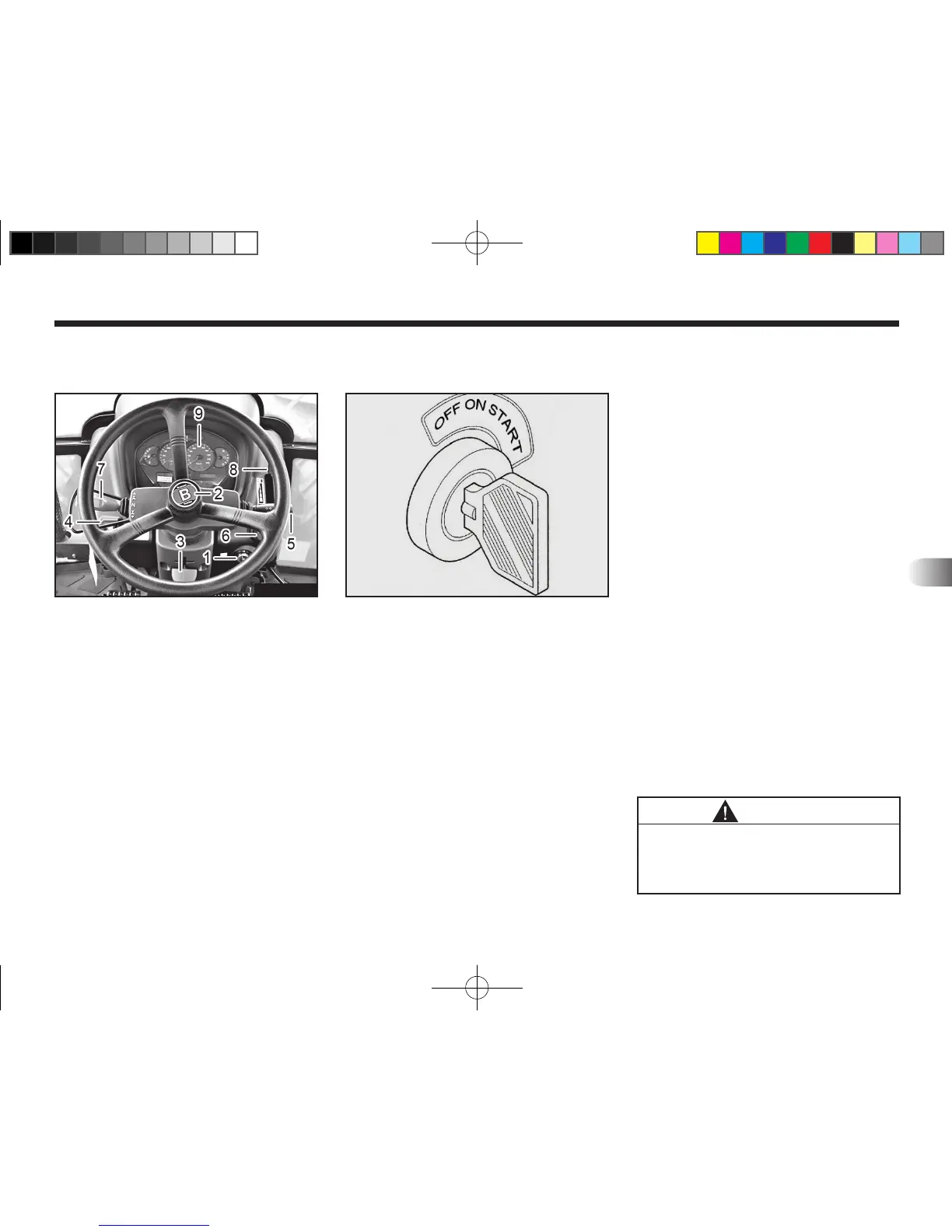

LXN5O402A
(1) Main Key Switch
(2) Telescopic Adjust Cap
(3) Steering Column Tilt Lever
(4) Emergency Lamp Switch
(5) Combination Lamp Switch
(6) 4wd Shift Switch
(7) F/R Shuttle Lever
(8) Hand Throttle
(9) Dash Meter
It is used to start the engine.
"ON"
Electric current ows to the switched
of all electrical parts. If the engine is
stopped, the engine oil pressure pi-
lot lamp and the battery charge pilot
lamp are lit. Depending on the out-
side temperature, the thermostat pi-
lot lamp may also be lit.
"START"
Starting motor turns and the engine
is started.
Once the engine is started, take your
hand off the key.
The key will return to the “ON” posi-
tion automatically and the engine will
keep running.
Turn engine off before performing
any maintenance on tractor
SWITCHES AND LEVERS
When the tractor is not in use,
take out the key and keep it in
a safe place.
•
CAUTION
LXN5O401a
