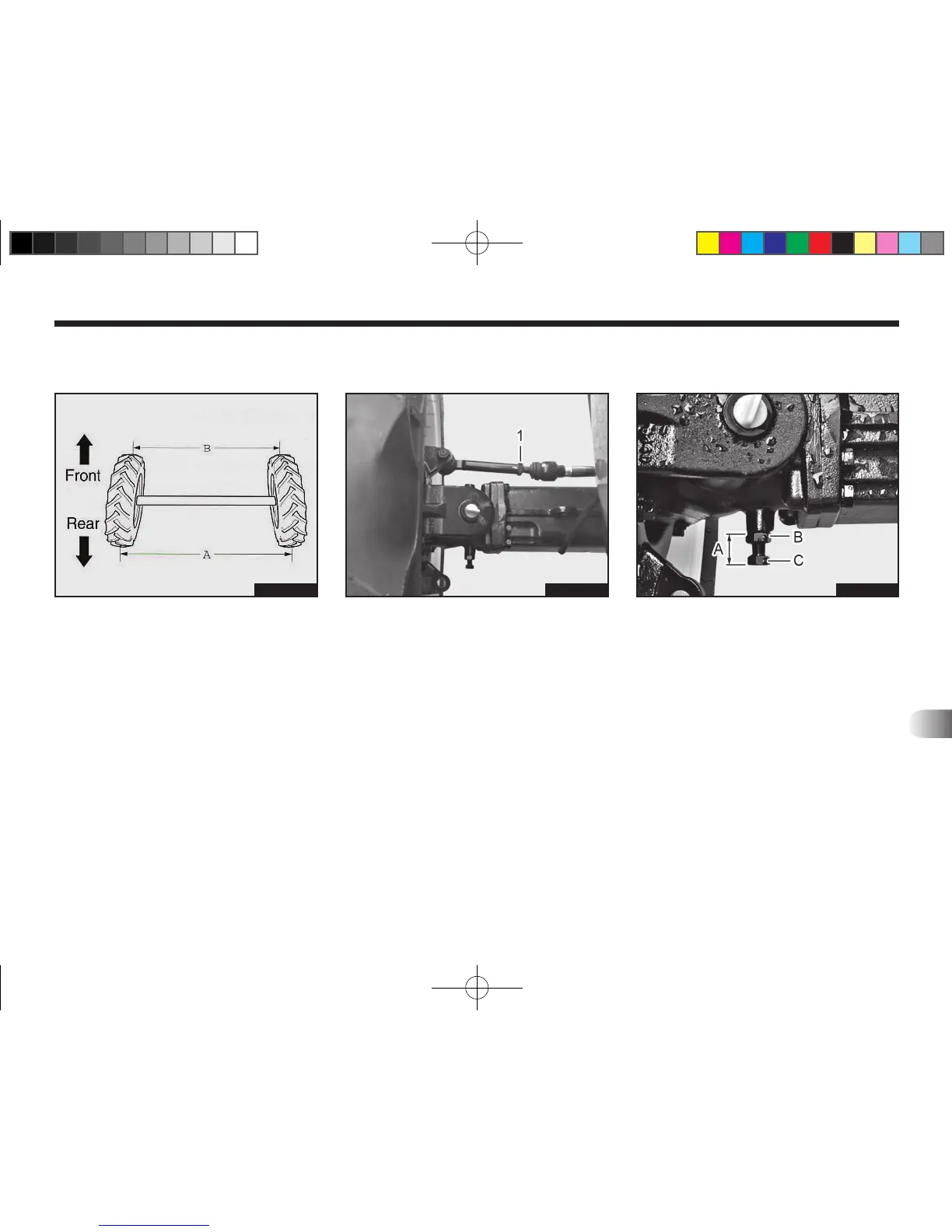

TOE-IN
If the toe-in is not properly aligned,
the steering wheel may be uncon-
trollable or the tractor may produce
an abnormal vibration. Measure the
distance A and the distance B of the
front wheels and see if the different
between the two measurements is
0.16 ~ 0.3 in (4~8 mm).
If not, loosen nuts at the end of the
cylinder rod on both sides and adjust
the length of the screws. Tighten the
nuts when the toe-in is 0.16 ~ 0.3 in
(4~8 mm).
• Left and right adjustment of screw
length must be same.
(1) Nut
LXN5O727A
FRONT AXLE SWING
(A) Stop Bolt Retaining Lock Nut
(B) Lock Nut (C) Stop Bolt
LXN5O728A
1. Slowly turn the steering wheel to
the left until the steering cylinder
travel has reached its limit, the
steering stops.
2. Measure between bottom of bolt
head and case “A”. It should be 1.2
in (30 mm).
