3. There are 3- holes in center link
mounting bracket.
Center link needs to be moved from
(A) to (C) as followed.
• The Position “A” allows the mini-
mum pressure.
• The Position “B” is standard.
• The Position “C” allows the max-
imum pressure.

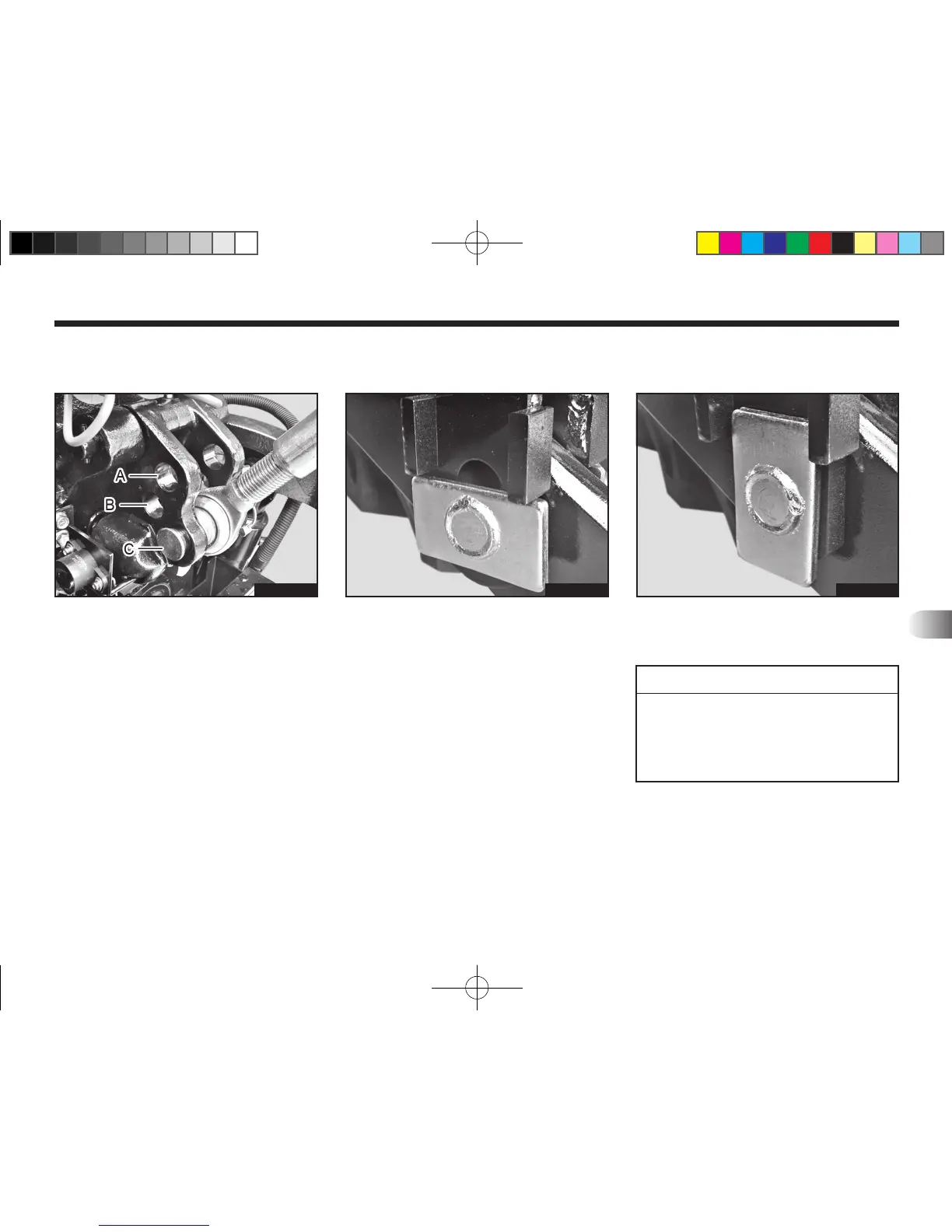

(A) Low Traction (B) Middle Traction
(C) High Traction
LXN5O528A LXN5O529A LXN5O530A
4. Adjusting for vertical oat.
Depending on the position of the
steel plate, lift links can be adjusted
to allow for vertical oat or to lock out
oat.
May be damaged the screw
thread when center link ex-
cessively over the adjustment
range.
•
NOTE
