4.4 Pump installation positions
The pump can be delivered with the following possible pumphead installation positions:

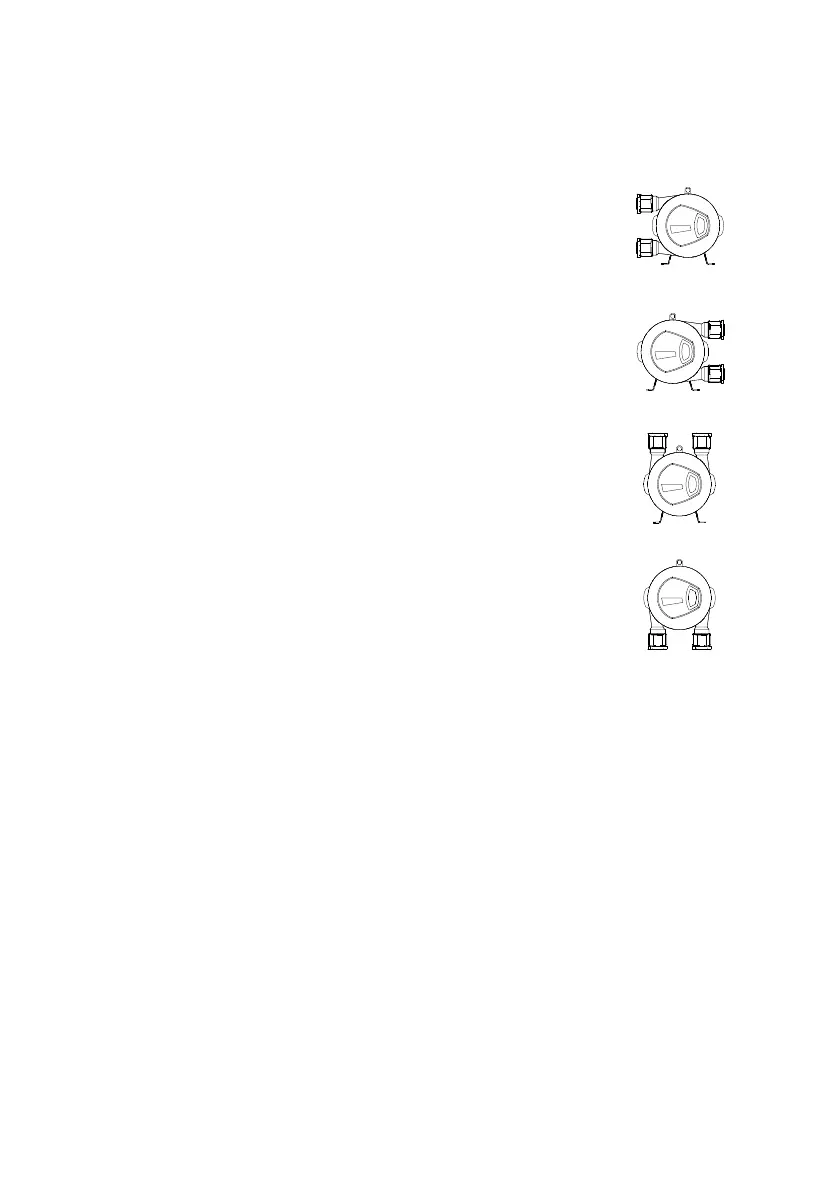

Position Description Pump layout
1 Pump ports at left hand side when facing the pump at the cover.
2 Pump ports at right hand side when facing the pump at the cover.
3 Pump ports facing upwards.
4 Pump ports facing downwards.
Concerning pumps Bredel 25 and Bredel 32 the position of the cover is equal for all pump positions,
as indicated by the position of the inspection window in the illustrations above. An accurate reading
of the lubricant level through the inspection window is possible at every pump position.
At every pump position, operational rotation of the rotor is possible in both directions. In this manual
the illustrations are based on pumphead position 2.
m-bredel-25-32-en-05 23
