Bredel 25 - Lifting and Moving the Pump

• In case of fixing to the floor use holes (A) or (B) and holes (C) at both sides of the pump.
• In case of levelling elements, use holes (A) and holes (C) at both sides of the pump.
Note: If the pump installation position is in position 4, then the use of levelling elements is not
possible.
Using anchor bolts
Position the pump on a horizontal surface. Use suitable anchor bolts to attach the pump to the floor
surface.

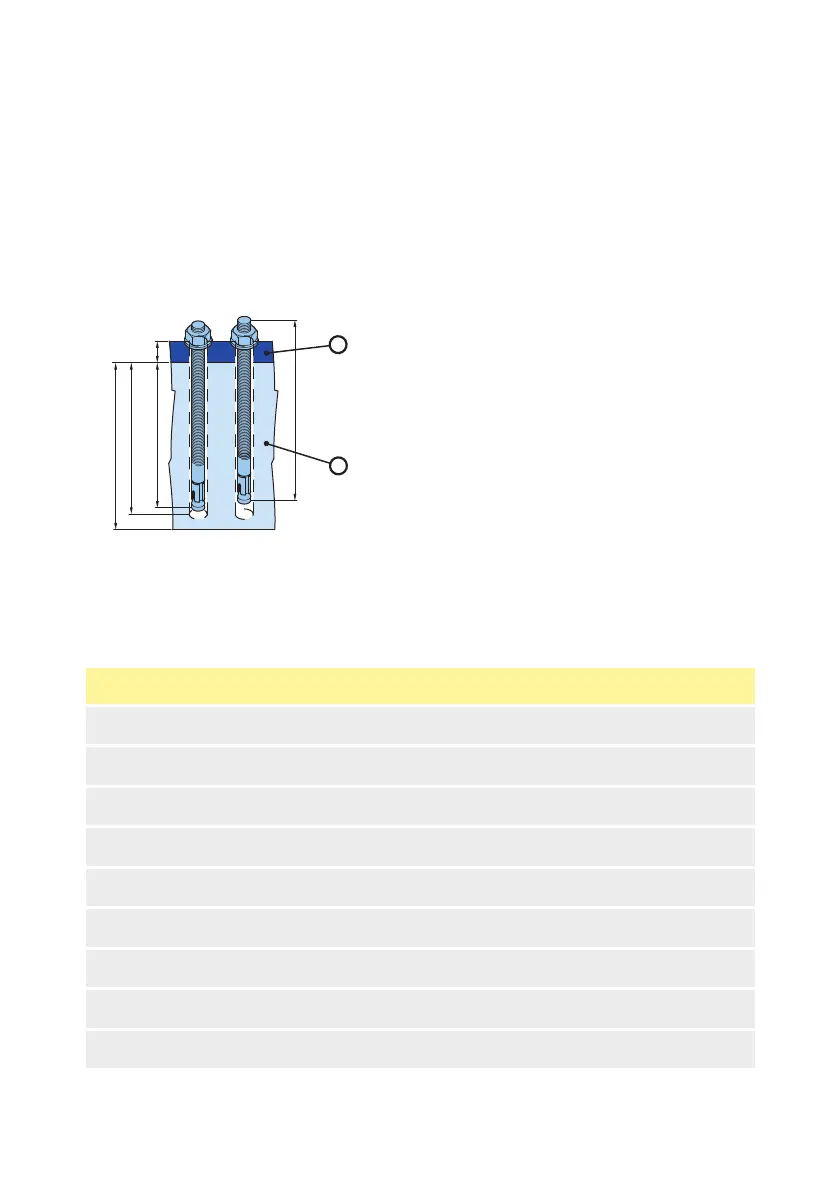

Follow the next steps to make sure the anchor bolts are used properly. Use the specifications below.
d
hs
da
t
l
A
B
A. Pump support
B. Foundation
1. Drill the holes.
2. Clean the bore holes.
3. Use a hammer to drive the anchor bolt into the bore.
4. Tighten the bolt to the applicable torque setting (MD).
Item Unit Bredel 25 Bredel 32
Flange thickness (d
a
) mm 5 5
Flange hole diameter mm 12 x 18 12 x 18
Anchor bolt part number - 28-F550016 28-F550016
Bolt thread - M10 M10
Bolt length (l) mm 85 85
Minimum foundation height (d) mm 200 200
Drill diameter mm 10 10
Minimum drill depth (t) mm 70 70
Mounting depth (hs) mm 60 60
