Description
Bredel
25
Bredel
32
Initial setup torque (plastic inserts)[Nm] 10 10
Initial setup distance ΔD/2 * [mm] 0 0
Approximate maximum distance ΔD/2 * at 0–8 bar (clamp near pump
housing) [mm]
0.5 0.5
Approximate maximum distance ΔD/2 * at 8–16 bar (clamp near flange)
[mm]
1 1
* ΔD = difference of hose outer diameter and clamp outer diameter
Alternatively in case a sanitary connection is not required the single clamp can be repositioned close
to the flange and tightened to seal up to 16 bar.

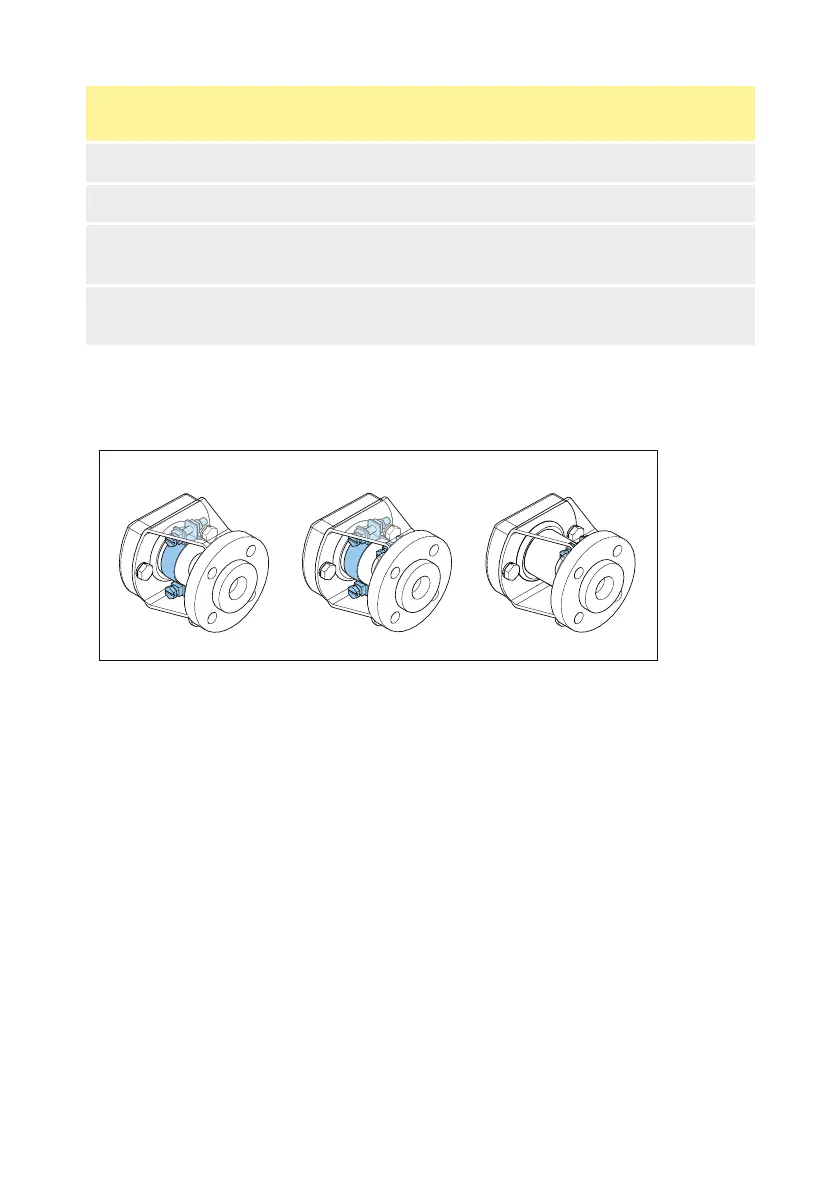

Left: Standard arrangement with one hose clamp near the pump housing. For low pressure demand.
Centre: Alternative arrangement with two hose clamps. For high pressure and sanitary demand.
Right: Alternative arrangement with one hose clamp near the flange. Only for high pressure demand.
