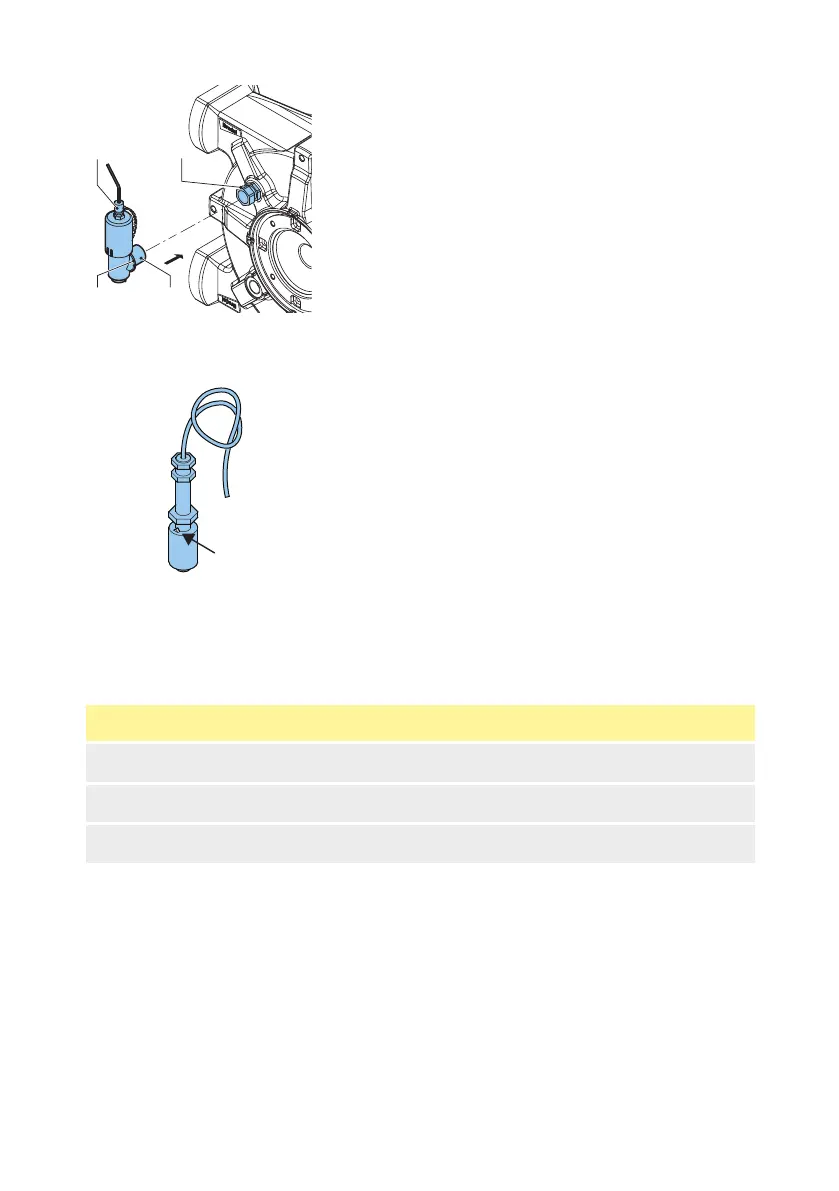

4. Place the ring (C) at the chain’s end around tube (D). Mount the breather to the crimp
connector (A) on the rear of the pump. Tighten the nut of the crimp connector gently.
5. Connect the high-level float switch to the auxiliary power circuit via the 2 metre long PVC cable
(2 x 0.34 mm
2
). Bear in mind that the electrical contact of the float switch is normally closed
(NC). The knob is upwards for normally closed operation. When the lubricant level is (too) high
the contact will open.
Specifications*
Voltage Max. 230 V AC/DC
Current Max. 2 A
Power Max. 40 VA
*For use in non-explosive atmospheres.
Note:Where the float switch is constructed to stop the equipment, operating has to be arranged so
that the stop function locks out, preventing the equipment from being restarted without resetting.
Check if the float switch is mounted with the NC sign at the top.
70 m-bredel-25-32-en-05
