Bredel 25 - Page 73

A B

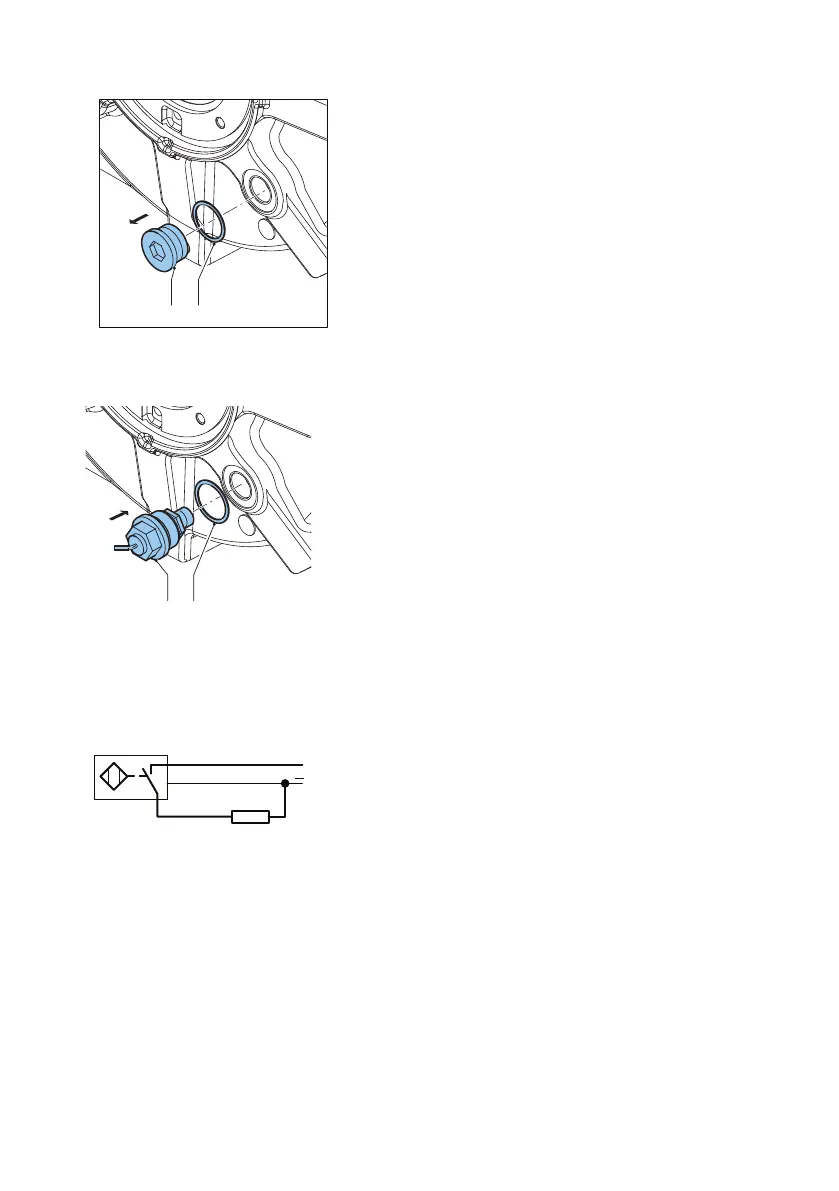

2. Dismount stop (A) at the rear of the pump housing. Check that the sealing ring (B) is not
damaged and replace it if necessary.
A B
3. Fit the stop with the inductive sensor (A) together with sealing ring (B) on the pump housing.
BN
BU
BK
+
pnp
4. Connect the sensor via the 2- metre long PVC cable (3 x 0.34 mm
2
).
m-bredel-25-32-en-05 73
