Warning
 If the Brigade Backsense
®
System is physically disconnected from the USB cable
or the PC while the Configuration Tool is in a connected state a power cycle of the
system is required for recovery (disconnect the system from the power supply,
e.g. switch ignition off then on again; re-activate cycle via the activation input
alone does not recover the system).
 All written configuration data will be deleted in such a case.
4.3.6 Writing Configuration to the Brigade Backsense
®
System
Make sure the Configuration Tool is in connected state. Once all the required configurations
are complete all the settings can be programmed into the Brigade Backsense
®
System. Click
in the menu area “System” then “Write Configuration”; this will upload the configuration to the
Brigade Backsense
®
System. Once configuration is written a confirmation window will appear,

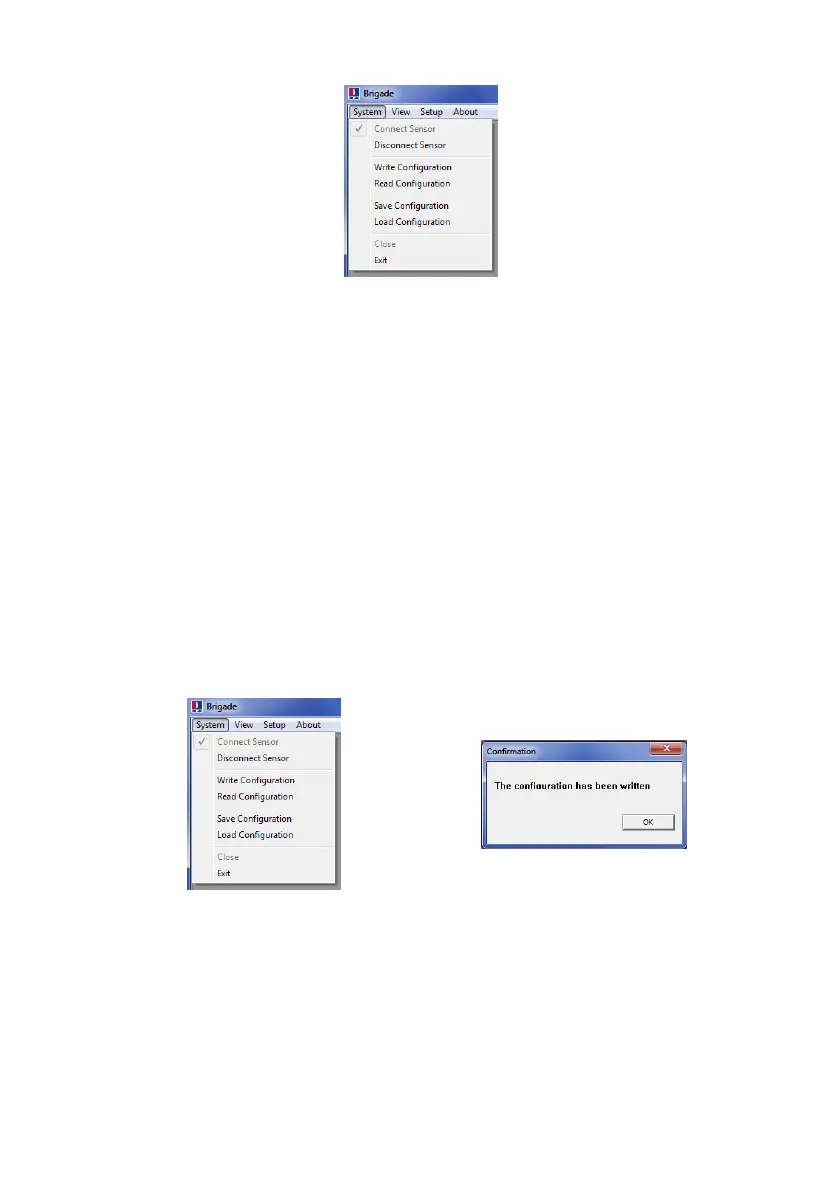

click “OK”. See images below.
Warning
 Make sure a Configuration Tool disconnection is performed before removing the
USB cable from the display or PC. See details in section “4.3.5 Disconnecting
from Brigade Backsense
®
System”.
4.3.7 Reading Configuration from the Brigade Backsense
®
System
Make sure the Configuration Tool is in connected state. In menu area, click “System” then
“Read Configuration”. This will read the configuration from the display. This is useful if a
configuration needs to be modified, copied from one system to another or stored in a file for
any future use. Once configuration has been read, a confirmation is displayed. See images
below.
