4.3.10.8 Buzzer Starting Zone
The Buzzer Starting Zone is set at the point where the display’s buzzer will start sounding.
Select the required buzzer starting zone from the drop down box and click “Apply”.

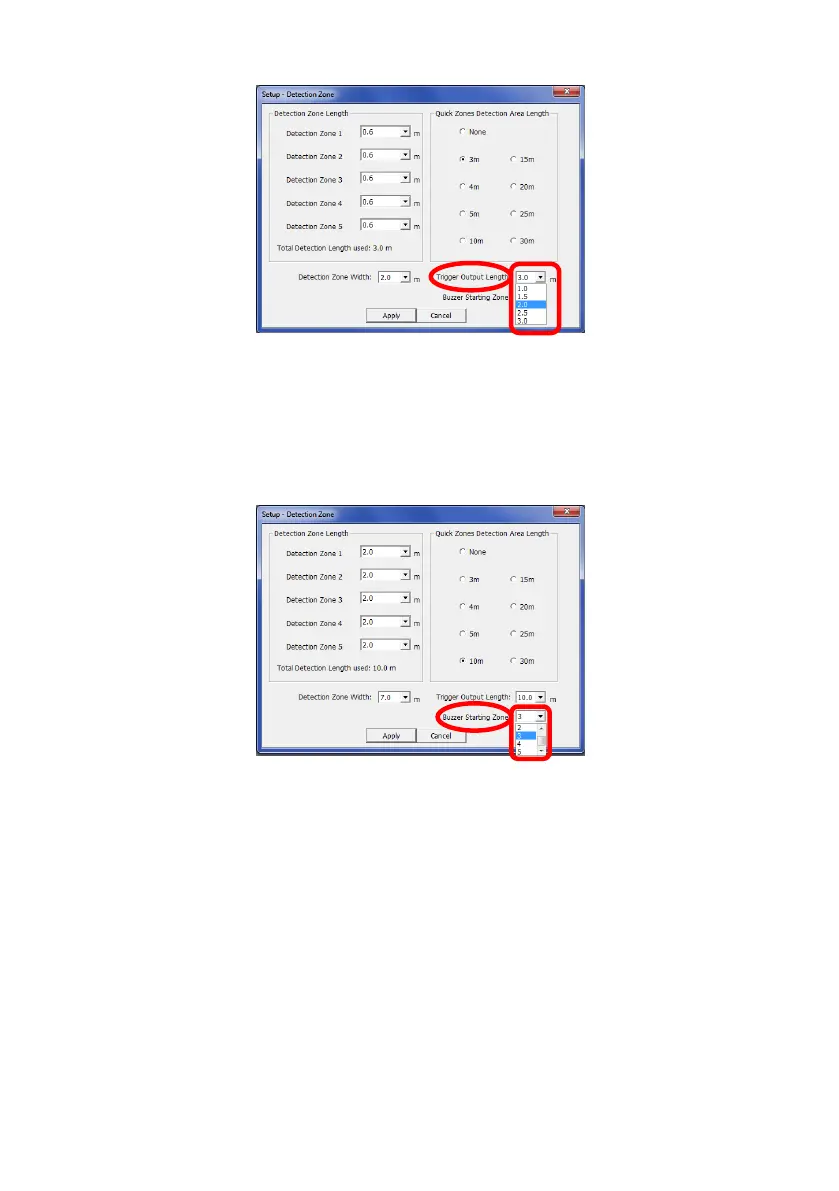

The example below shows the Detection Zone Length at 10.0m with the Buzzer Starting Zone
being set for Detection Zone 3. This means the display will show only illuminated Zone Light
warnings until any detected object is within Detection Zone 3 and the yellow Zone Light is
active. At this point the buzzer will sound.
4.3.11 Blind Area Setup
4.3.11.1 Relationship between Blind Area and Detection Area
The Brigade Backsense
®
BS-8000 can set Blind Cells inside the Detection Area to be ignored.
These can be set at different sizes and selected individually to accommodate varied
applications. Both the Detection Area and the Blind Area is symmetrical along same centre
line.
The image below shows an example of the view windows for a larger Detection Area (10m x
7m) compared to a smaller Blind Area (3m x 2m) side by side in the Configuration Tool.
