4.3.10.5 Quick Zones Detection Area Length
There are eight “Quick Zones”, these are preset zones and can be selected by clicking the
appropriate check box next to the desired distance. Using this option will set the total length
and create five equal zones. This does not affect the width, trigger output length or buzzer
starting zone, these still should be set up manually as required.

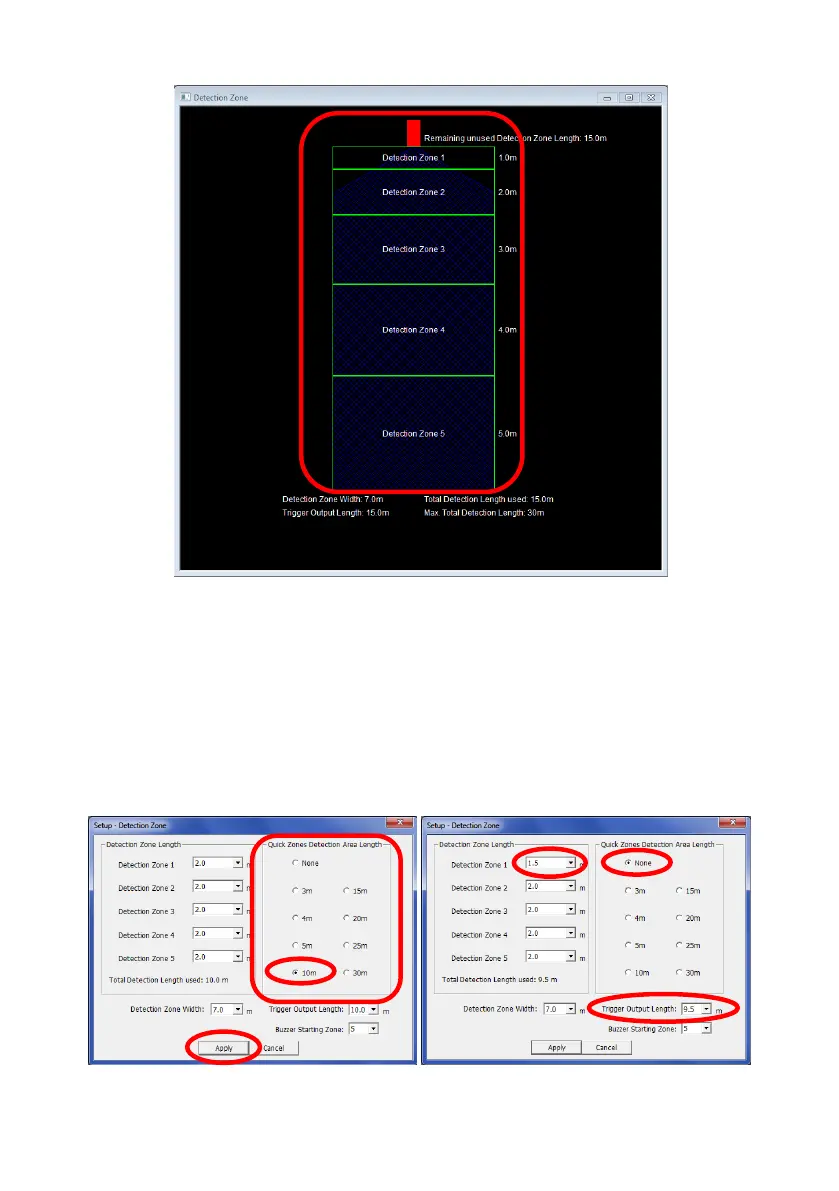

If one of the Detection Zones Length is changed, the Quick Zones Detection Area Length will
return to “None”. See below the image on the left before and highlighted on the right after the
“Detection Zone 1” has manually been changed.
Note: The trigger output length will automatically reduce if the total detection length has been
shortened.
