Brivo B-ACS6100L-E - Control Board and Expansion Board Switch Locations

© 2022 Brivo Systems LLC. All rights reserved. PUB-Brivo ACS6100 Installation Manual
13
Brivo ACS6100 Installation Manual

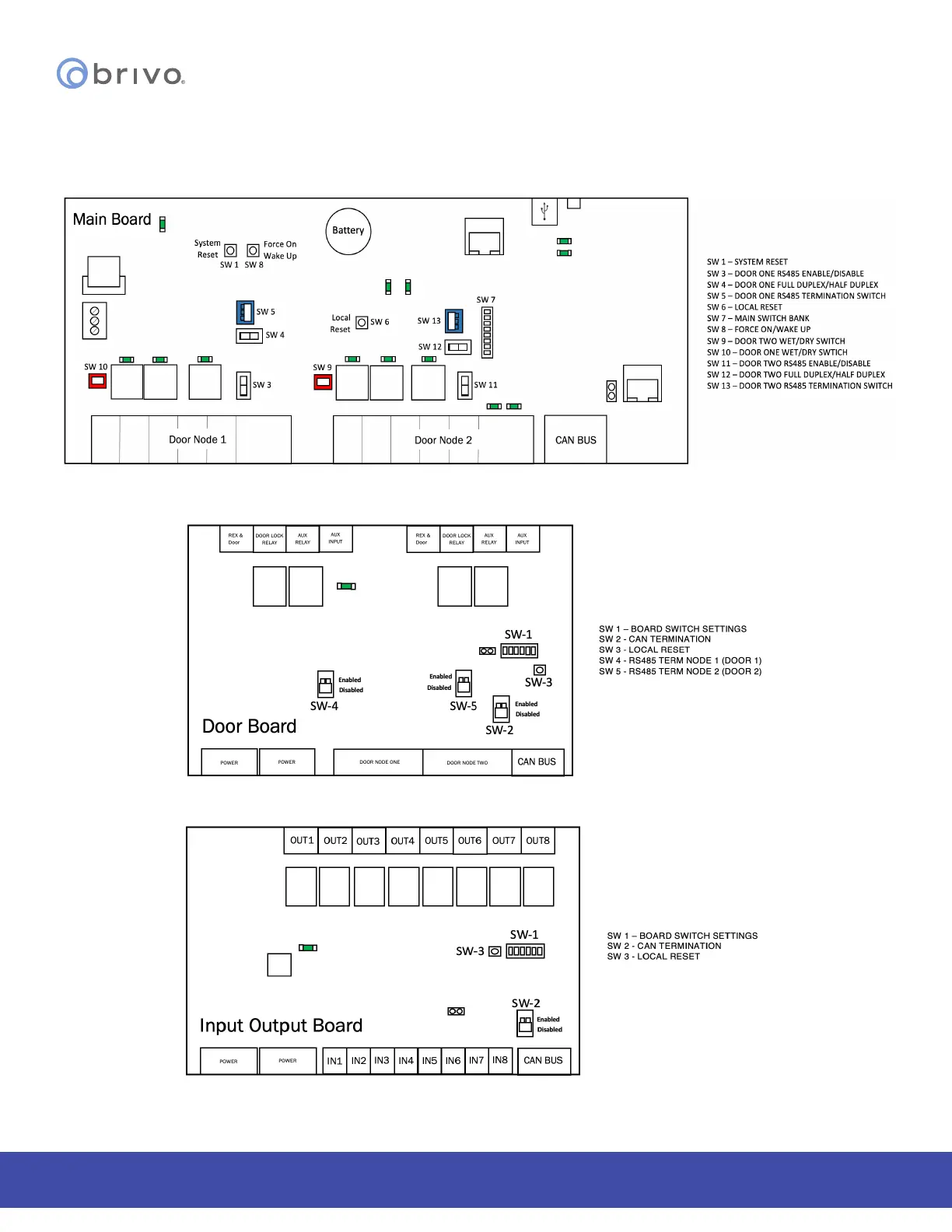

ACS6000 MAIN CONTROL BOARD and ACS6100 Door Board and ACS6100 Input/Output Board
switch locations
Specic switch functionality is discussed later in the installation manual.
Figure 1 - ACS6000 MAIN CONTROL BOARD Switch Locations
Figure 2 - ACS6100 DOOR BOARD Switch Locations
Figure 3 - ACS6100 INPUT OUTPUT BOARD Switch Locations
