Brocade DCX 8510-8 Backbone Hardware Reference Manual 57
53-1002180-03
Determining the status of a WWN card
4
The following figure displays the WWN bezel (logo plate). The WWN cards are under the bezel.

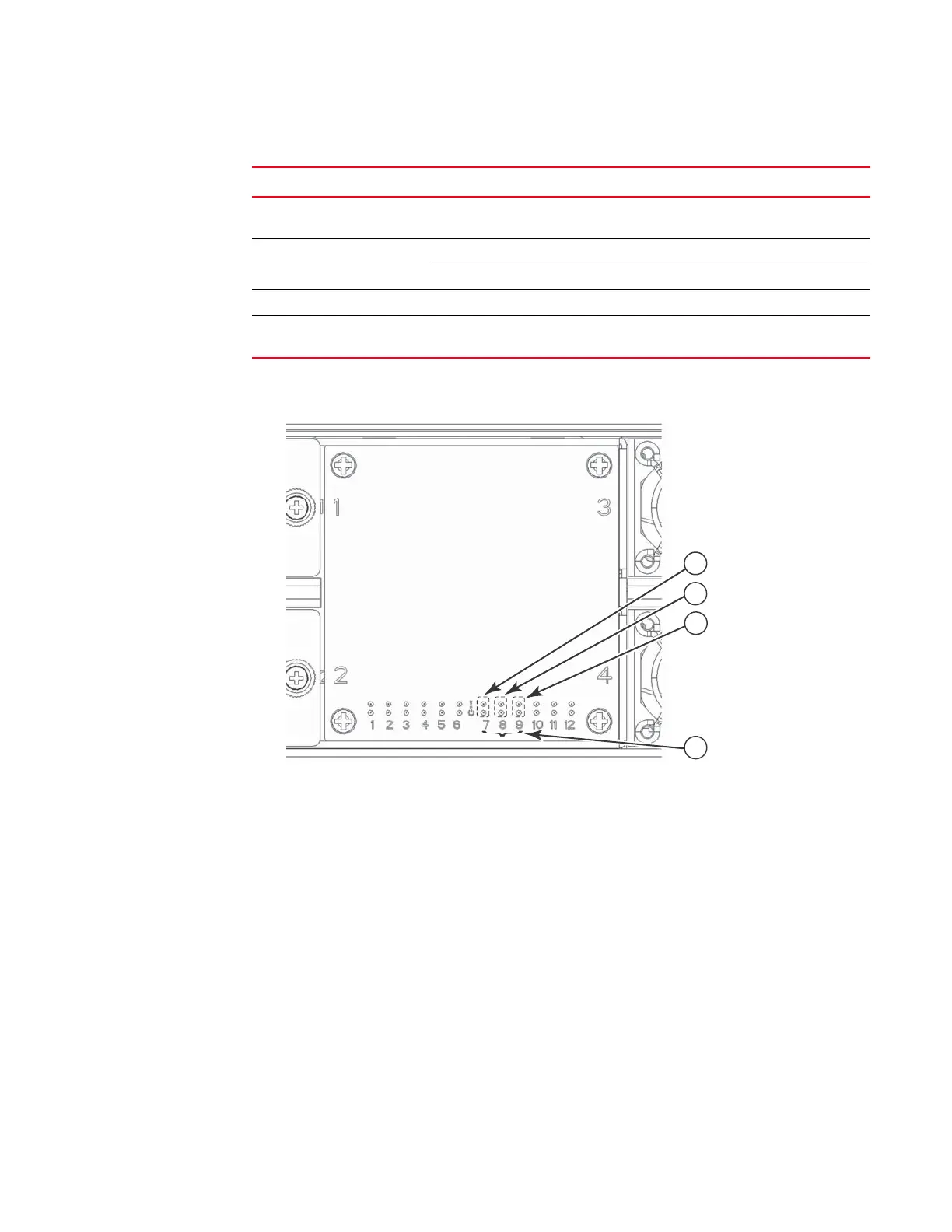

FIGURE 14 WWN bezel (logo plate) with LEDs for DCX and DCX 8510-8
Table 10 describes the WWN card LED patterns and the recommended actions for those patterns.
TABLE 10 WWN LED patterns for DCX and DCX 8510-8
LED location/purpose Color Status Recommended action
Port blade/CP/CR blade
power
Steady green Power is okay. No action required.
Port blade/CP/CR blade
status
Steady amber Card is faulty. Check card.
No light (LED is off) Card is okay. No action required.
NOTE: If a blade slot has a filler panel installed, the corresponding LEDs on the WWN card do not light up.
NOTE: If a status LED on the WWN bezel flashes, the power LED on the WWN bezel also flashes, for increased
visibility.
1 CP blade Status (above) and Power (below) LEDs 3 Port blade Status (above) and Power (below) LEDs
2 CR blade Status (above) and Power (below) LEDs 4 Slot numbers
2
3
4
1
