Brocade FastIron X Series Chassis Hardware Installation Guide 123
53-1001723-02
Replacing a switch fabric module (FSX 800 and FSX 1600 only)
6
5. Use a #2 Phillips-head or flathead screwdriver to tighten the two screws at either end of the
switch fabric module’s front panel.

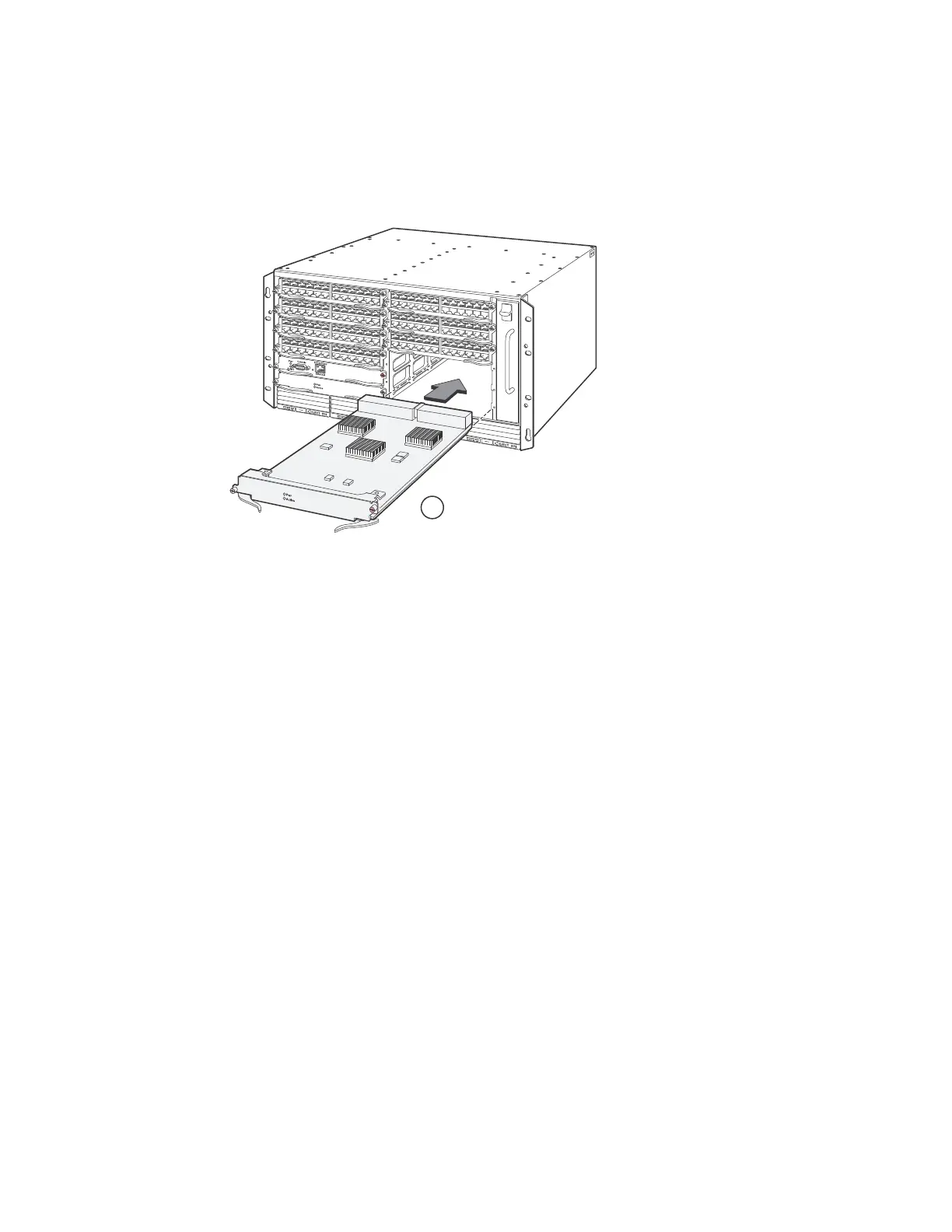

FIGURE 43 Installing a switch fabric module in the FSX 800
1Switch Fabric module
1
