Brocade FastIron X Series Chassis Hardware Installation Guide 179
53-1001723-02
Upgrade kit contents
A
The following illustrations show the DIP key insertion and settings.

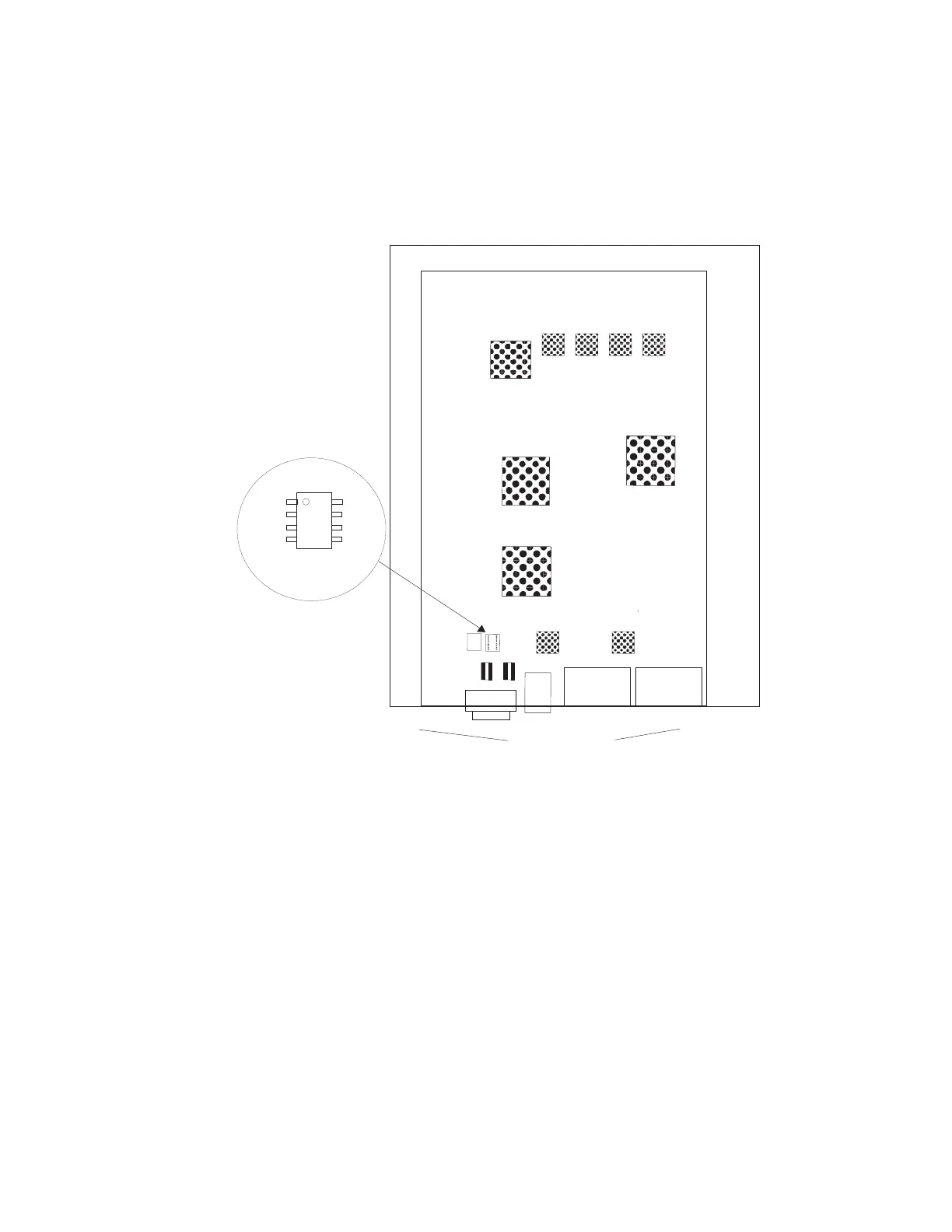

FIGURE 71 DIP key insertion for the IPv6 and IPv4 8-port GbE management modules
(SX-FI8GMR6 and SX-FI8GMR4)
Rear
Port Connectors
CAUTION: PIN 1
MUST GO HERE!
If you accidentally insert
the upgrade DIP backwards,
the device will not work and
may be damaged when you
power it on.
DIP key
for upgrade
Pin 1
U63
