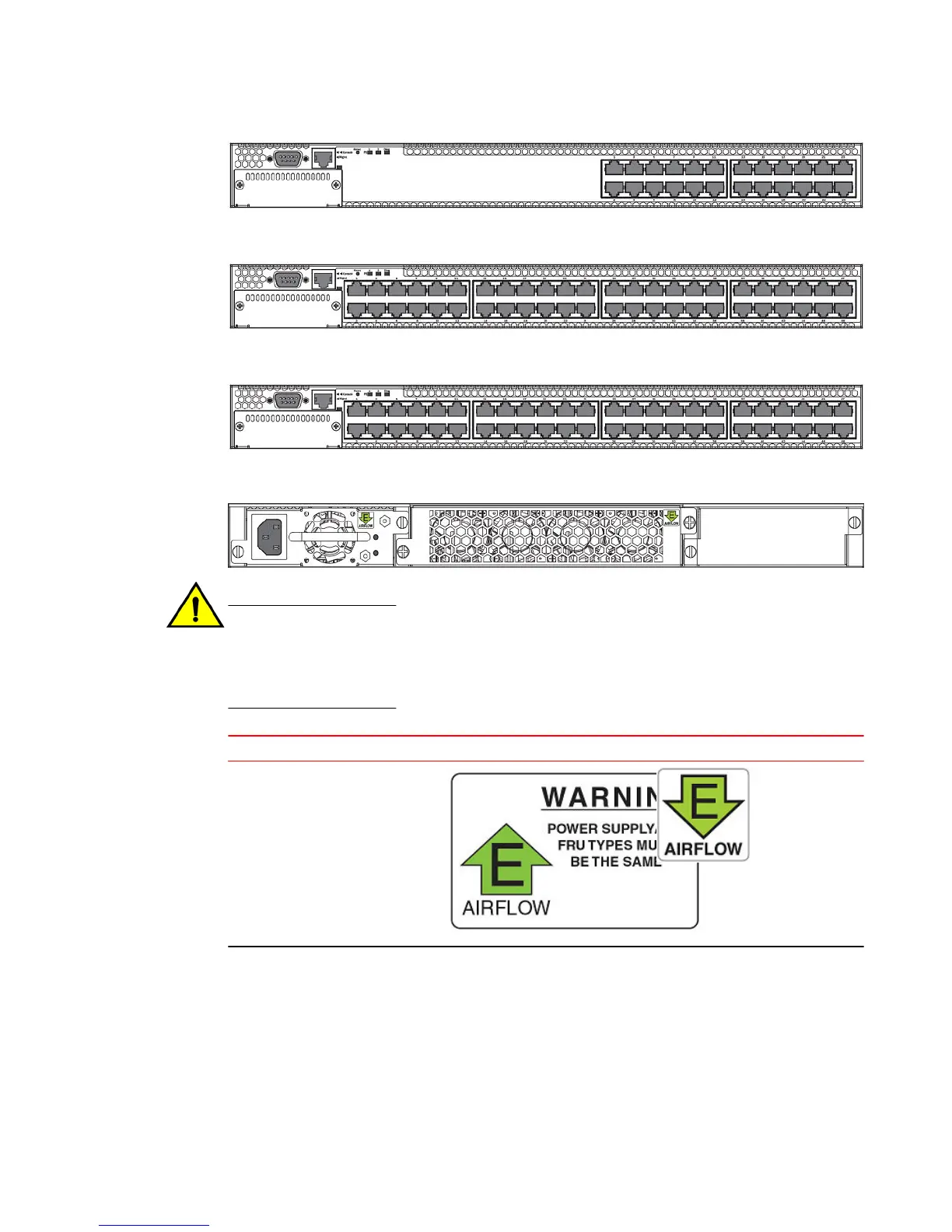

FIGURE 9 Brocade FCX 648-E front panel
FIGURE 10 Brocade FCX 648-I front panel
FIGURE 11 Brocade FCX 624-E, FCX 624-I, FCX 648-E, and FCX 648-I rear panels
CAUTION
For the Brocade FCX 624-E, FCX 624-I, FCX 648-E, and FCX 648-I devices, be sure that the
airflow direction of the power supply unit matches that of the installed resiliant quad-fan fan
tray. The power supplies and fan trays are clearly labeled with either a green arrow with an "E",
or an orange arrow with an "I".
Device Label on required power supply Label on required fan tray
Brocade FCX 624-E and Brocade
FCX 648-E
Product Overview
14 Brocade FCX Series Hardware Installation Guide
53-1002977-01
