3. Remove the fan tray from the anti-static shielded bag.
4. Holding the fan tray level, guide it into the carrier rails on each side and gently push it all the way
into the slot, ensuring that it firmly engages with the connector.
5. When you are sure the fan tray has properly engaged the connector, tighten the retainer screws to
secure the fan tray in the slot.
NOTE
The fans are controlled by software, and their speed is set according to the environmental
temperature surrounding the switch.
Installing an optional module

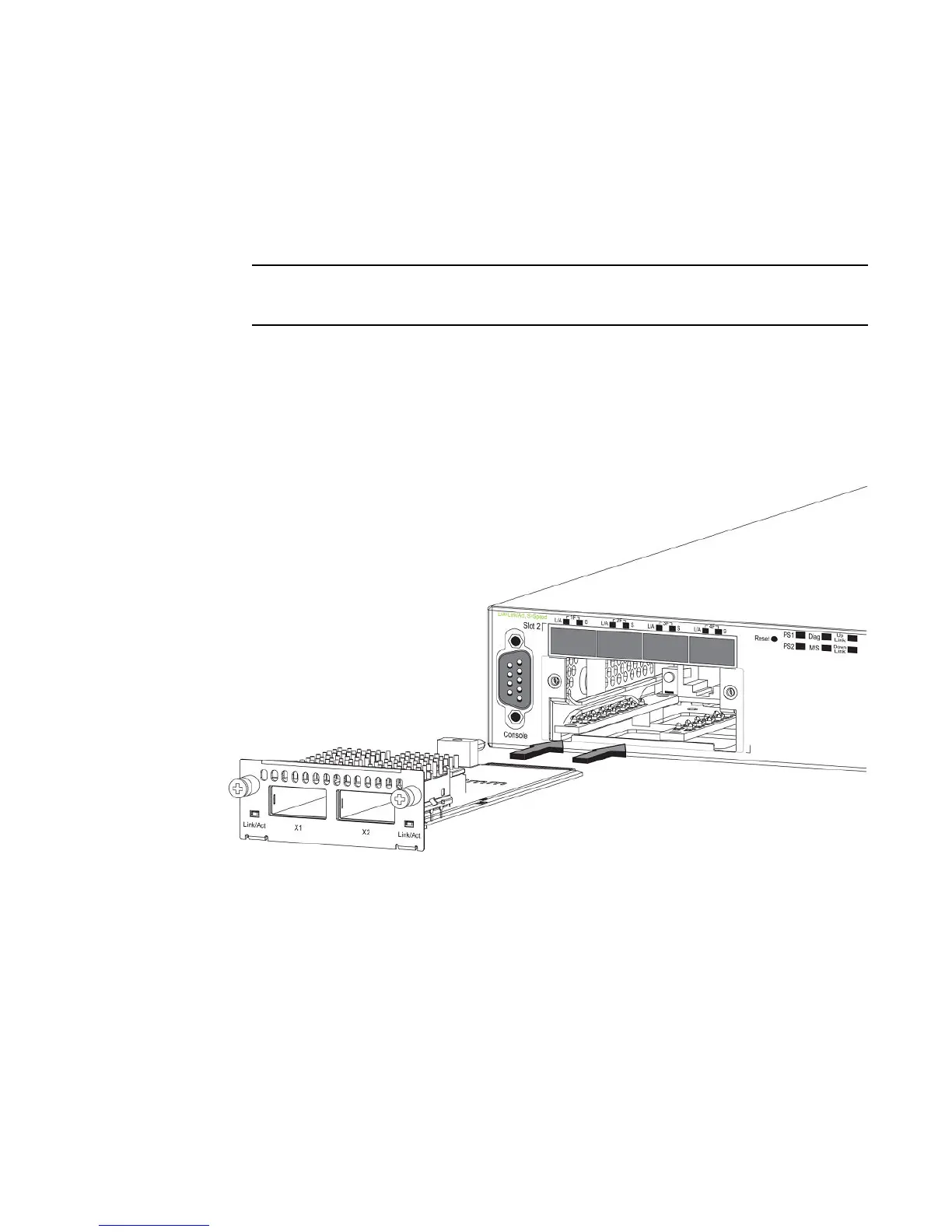

FIGURE 40 Installing an optional module on Brocade FCX 624S, FCX 648S, FCX 624S-F, FCX 624S-
HPOE, and FCX 648S-HPOE devices
Installing an optional module
Brocade FCX Series Hardware Installation Guide 53
53-1002977-01
