4. Grasp the bail latch and pull the copper or fiber optic module out of the port.

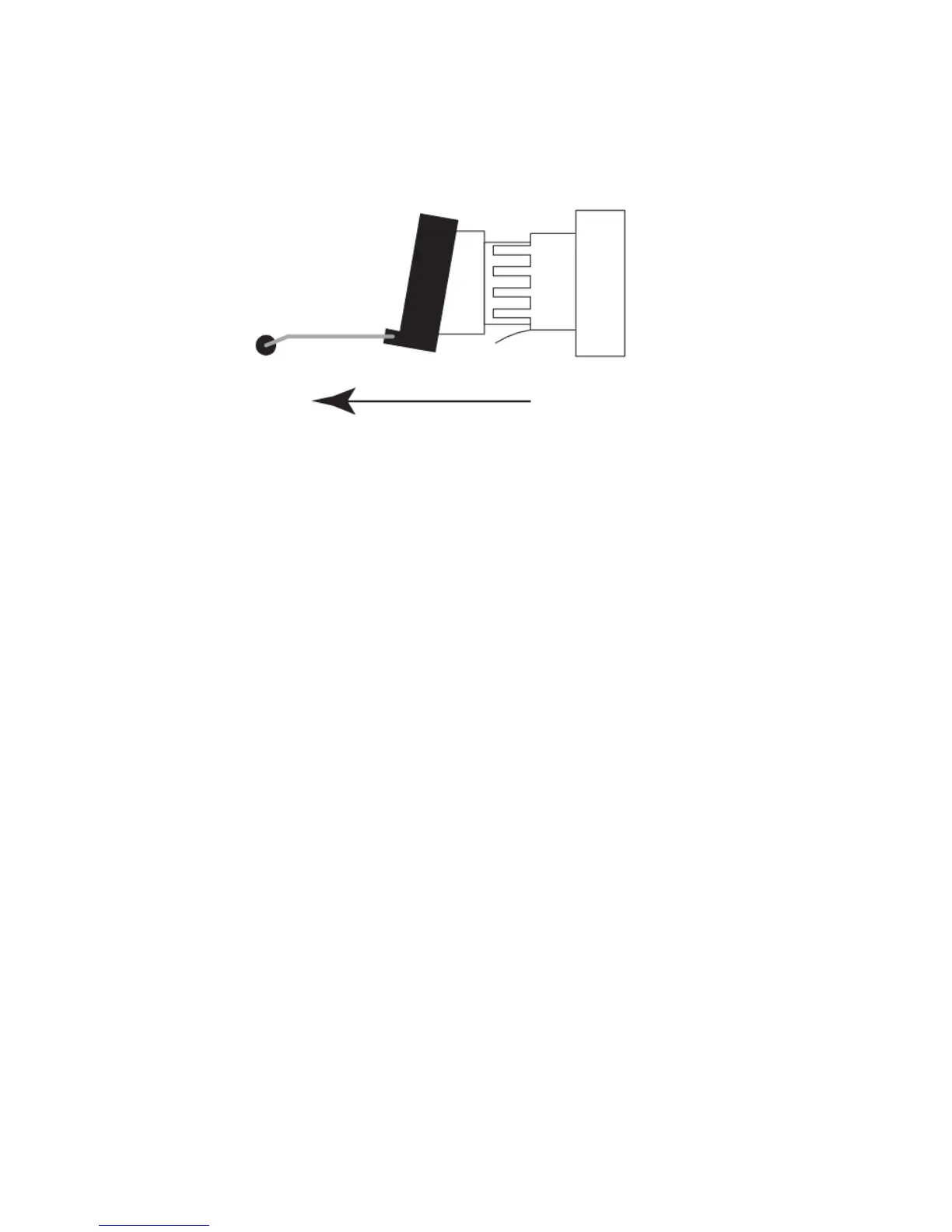

FIGURE 48 Remove fiber optic module
5. Store the copper or fiber optic module in a safe, static-free place or in an anti-static bag.
6. Install a new copper or fiber optic module in the port.
Cabling a fiber optic module
For instructions on cabling a fiber optic module refer to Cabling a fiber optic transceiver.
Cleaning the fiber optic connectors
For instructions on cleaning a fiber optic module refer to Cleaning the fiber optic connectors.
Cabling a fiber optic module
Brocade FCX Series Hardware Installation Guide 83
53-1002977-01
