TABLE 2 Port status LEDs
LED Condition Status
Out-of-band management port (2 LEDs) O (right side) Oine
On/Flashing (left side) Link-up. Flashing indicates the port is
transmitting and receiving user packets.
On/Green (right side) 1 Gbps Link-up
Right LED o, left LED on or ashing 10/100 Mbps Link-up. Flashing indicates the
port is transmitting and receiving user packets.
1 GbE ports
(1 - 12, Slot 1)
Link/Act
O (right side) The right LED on the ports indicates PoE/PoE+
activity and is only active on ports 1-4. On non-
PoE/PoE+ ports, the right LED remains o.
O (left side) A link is not established with a remote port.
On/Flashing Green (left side) The port has established a valid link at 10, 100,
or 1000 Mbps. Flashing indicates the port is
transmitting and receiving user packets.
PoE+(1 - 4) On/Green (right side) The port is providing PoE or PoE+ power to a
connected device.
O (right side) The port is not providing PoE or PoE+ power.
100 Mbps/1 GbE RJ-45 ports (C1 - C2, Slot
2)
Link/Act
On/ Flashing Green The port is operating at 1 Gbps. Flashing
indicates the port is transmitting and receiving
user packets at 1 Gbps.
O A link is not established with a remote port.
100 Mbps/1 GbE SFP ports (F1 - F2, Slot 3)
Link/Act
On/ Flashing Green The SFP port is operating at 1 Gbps. Flashing
indicates the port is transmitting and receiving
user packets at 1 Gbps.
O A link is not established with a remote port.
System status LEDs
The following
gure shows the location of the system status LEDs on an ICX 6430-C device:

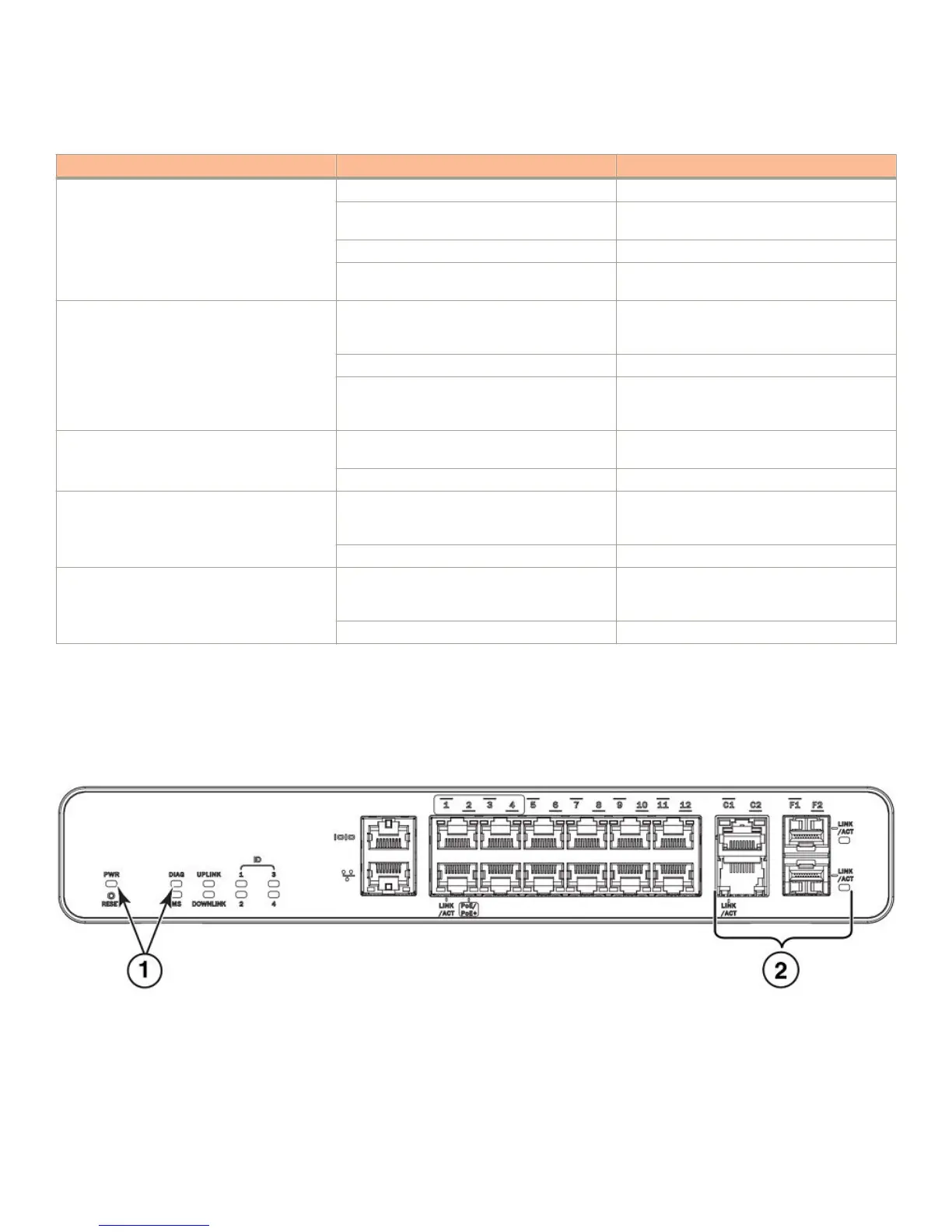

FIGURE 3 System status LEDs on an ICX 6430-C12 device
1. System status LEDs
The following table lists the system status LEDs on an ICX 6430-C device and their corresponding conditions and status:
Port, system, and power status LEDs
Brocade ICX 6430-C Compact Switch Hardware Installation Guide
14 Part Number: 53-1003618-02
