3-1
Model 0254
Section 3 Operation
Installation and Operation Manual
X-SE-0254-eng
Part Number: 541B129AAG
September, 2010
3-1 Home Screen
The Model 0254 home screen is the instrument's central information and
navigation indicator. The home screen displays following initial power
application, and automatically follows the make-model screen banner. It
provides an overall view of the instrument's operation. Table 3-1 on p. 3-2
describes the main elements of the home screen.

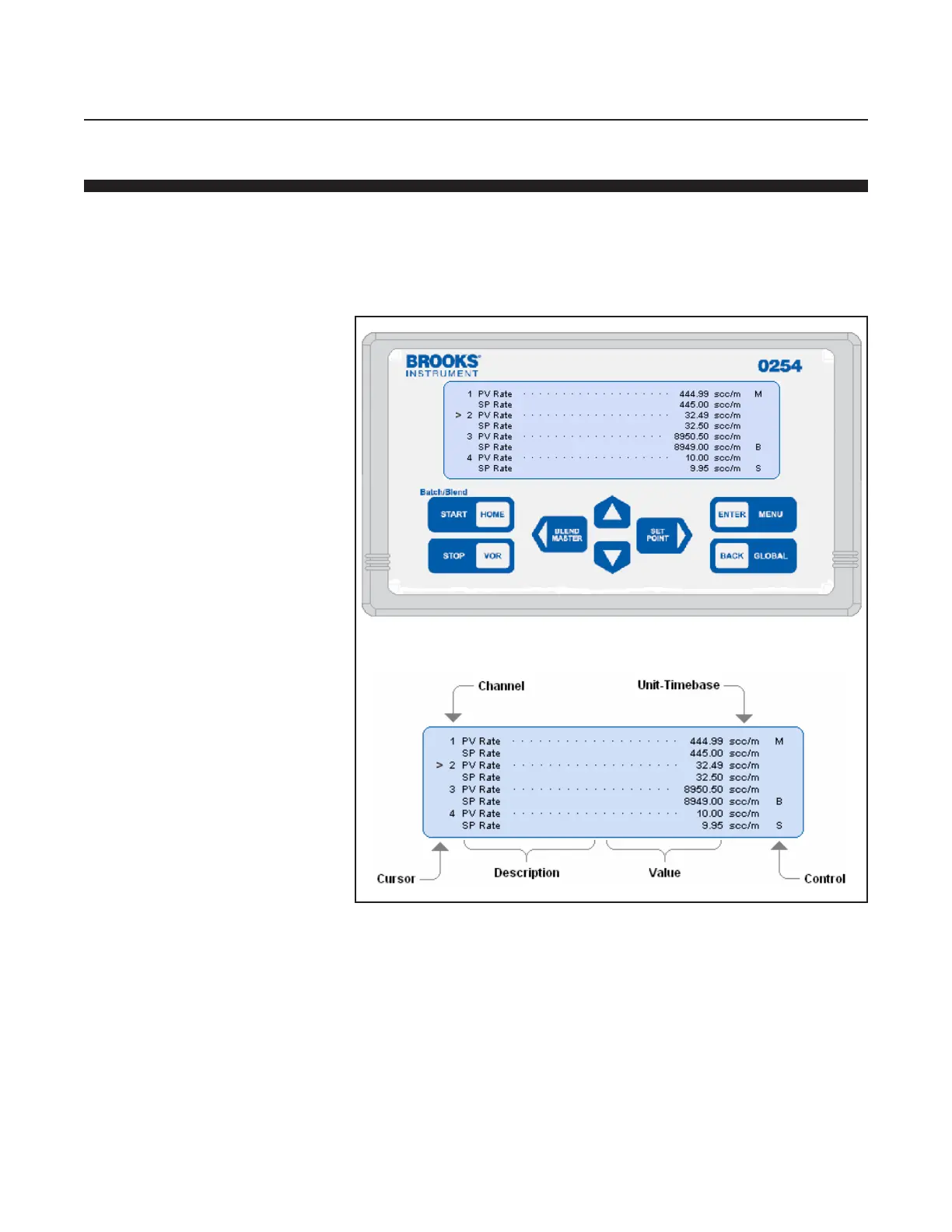

Figure 3-1 Home Screen
