Model 0254
Section 3 Operation
Installation and Operation Manual
X-SE-0254-eng
Part Number: 541B129AAG
September, 2010
3-3-2 User Interface Screen Map

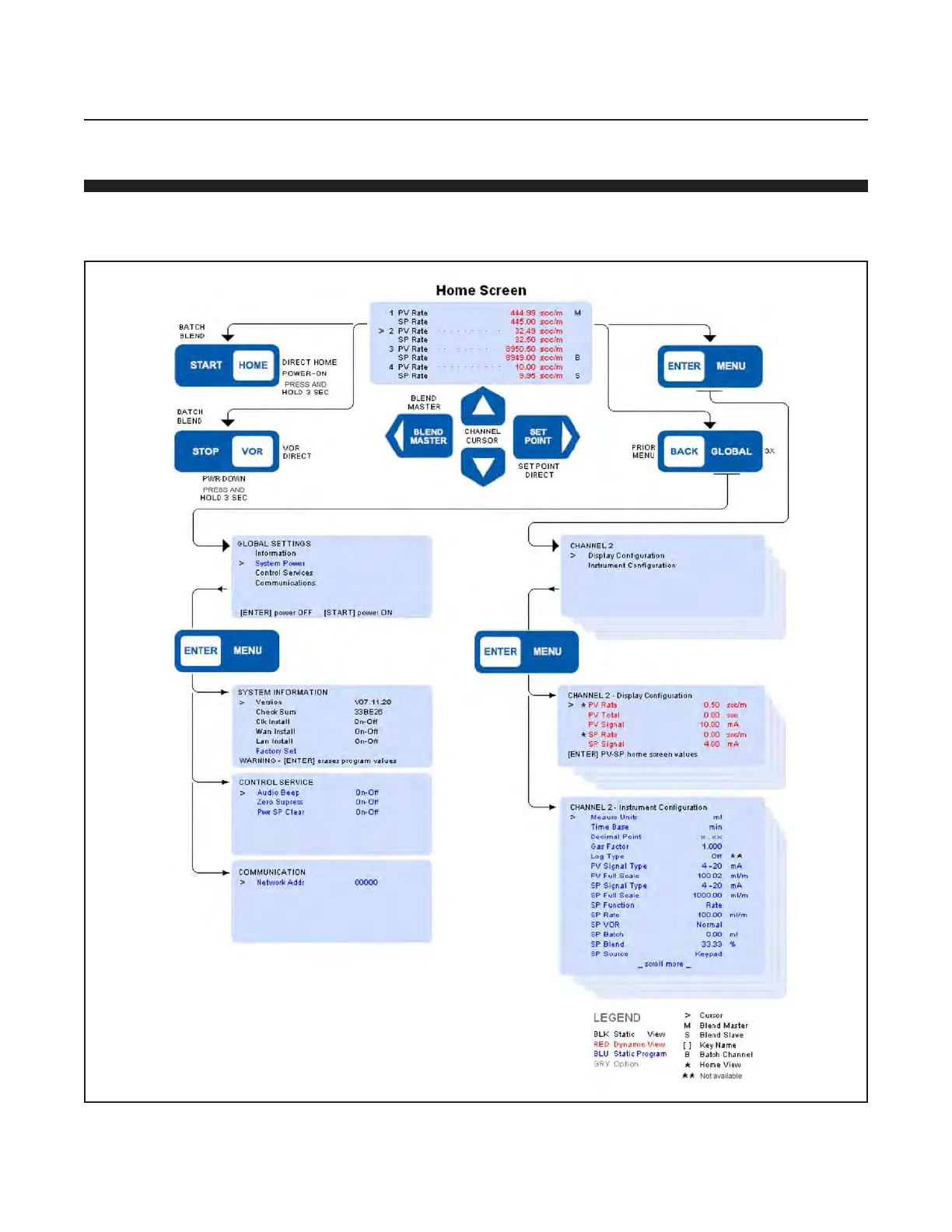

The following diagram showing the screen mapping from the home page to
the channel values.
Figure 3-2 User Interface Screen Map
