3. INSTALLATION
BAS-311HN, BAS-326H
5

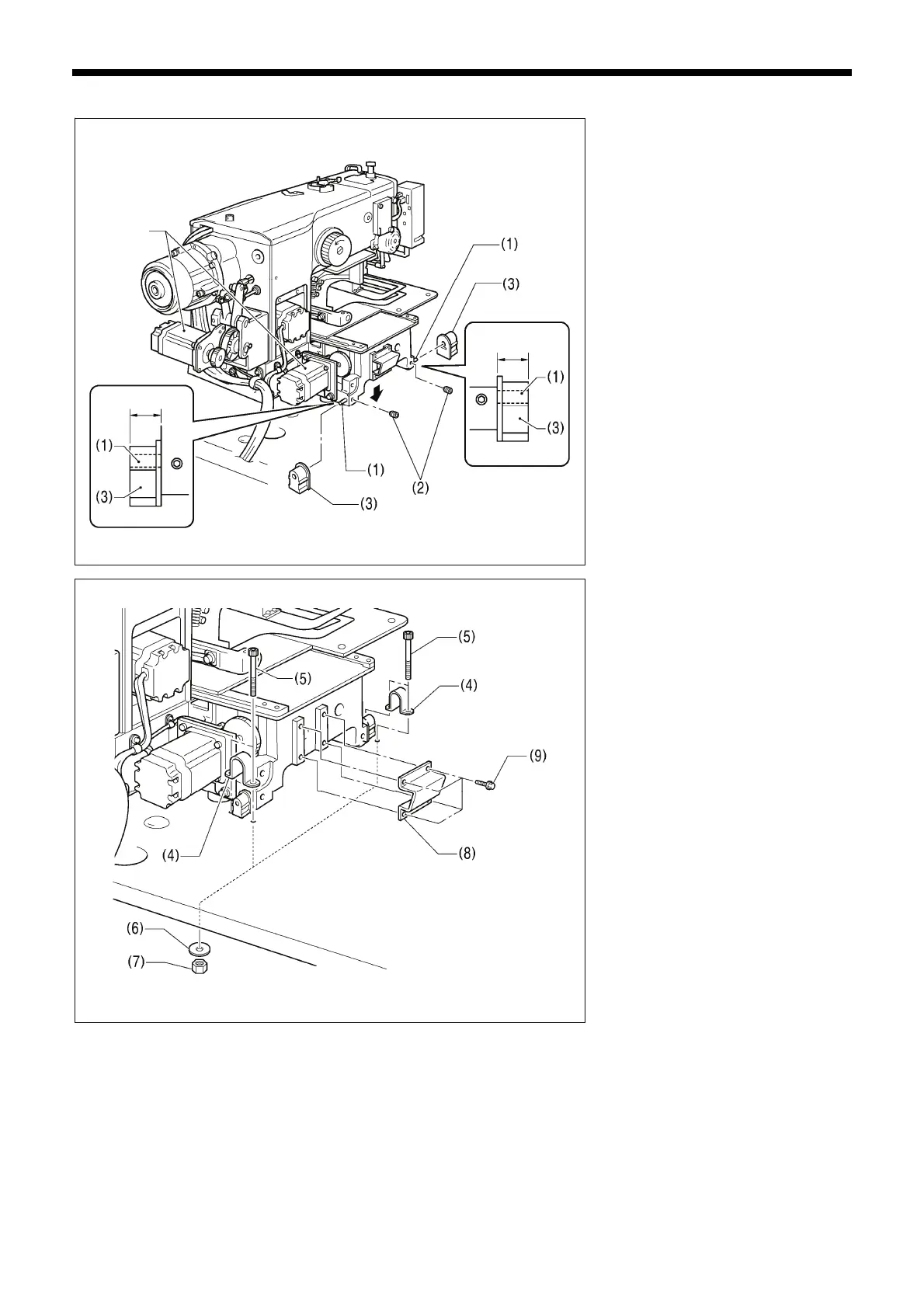

3-4. Installing the machine head
(1) Pins [2 pcs.]
(2) Set screws [2 pcs.]
(3) Hinge rubber assemblies [2 pcs.]
Place the machine head gently on top of
the oil pan.
NOTE:
• Be careful not to get the cords
clamped between the machine head
and the oil pan.
• When holding the machine head, do
not hold it by the pulse motor. This
may cause problems with operation
of the pulse motor.
(4) Hinge holders [2 pcs.]
(5) Bolts [4 pcs.]
(6) Plain washers [4 pcs.]
(7) Nuts [4 pcs.]
(8) Head rest
(9) Bolts with washer [4 pcs.]
3506B
Pulse motor
Approx. 20 mm
3230B
Approx. 20 mm
