4. PREPARATION BEFORE SEWING
30
BAS-311HN, BAS-326H

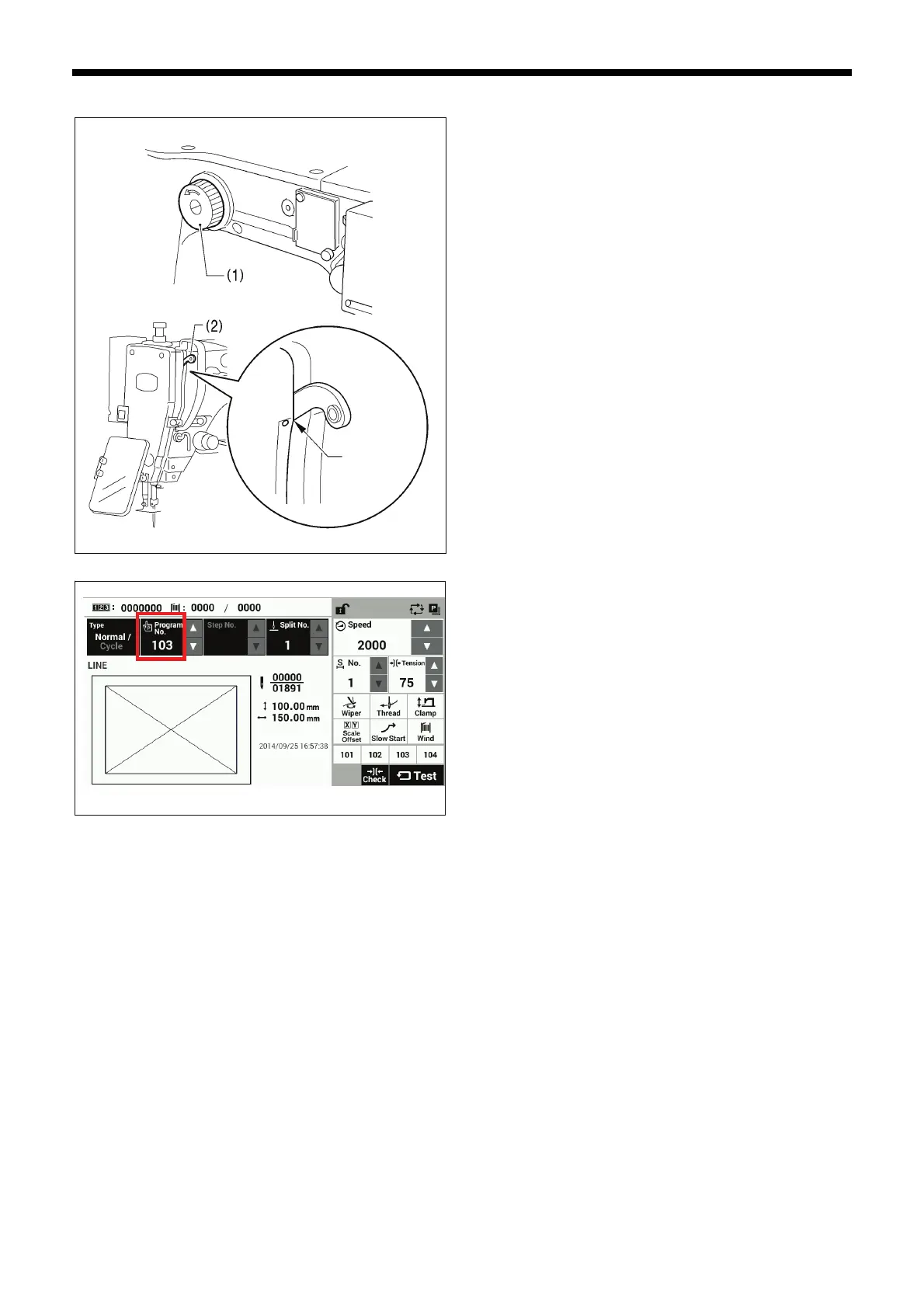

4-6. Starting up
Before turning on the power, check that the needle bar
is at the needle up stop position.
Turn the pulley (1) in the direction of the arrow until the
ridge at the bottom of the thread take-up (2) is aligned with
the index mark.
Turn on the power.
If a program has been registered, the program number and
a preview of the sewing pattern will be displayed.
No programs are registered at the time of shipment from the
factory, and so "---" is displayed as the program number
(No.).
For details on the sewing data reading method, refer to "3.
USING STORAGE MEDIA" in the "LCD Panel/Operation
Panel" Instruction Manual.
3068B
Aligned
2979B
To Next Page
