7. STANDARD ADJUSTMENTS
BAS-311HN, BAS-326H
51
7-20. If processing the work clamps and the feed plate to a shape that
matches the sewing pattern

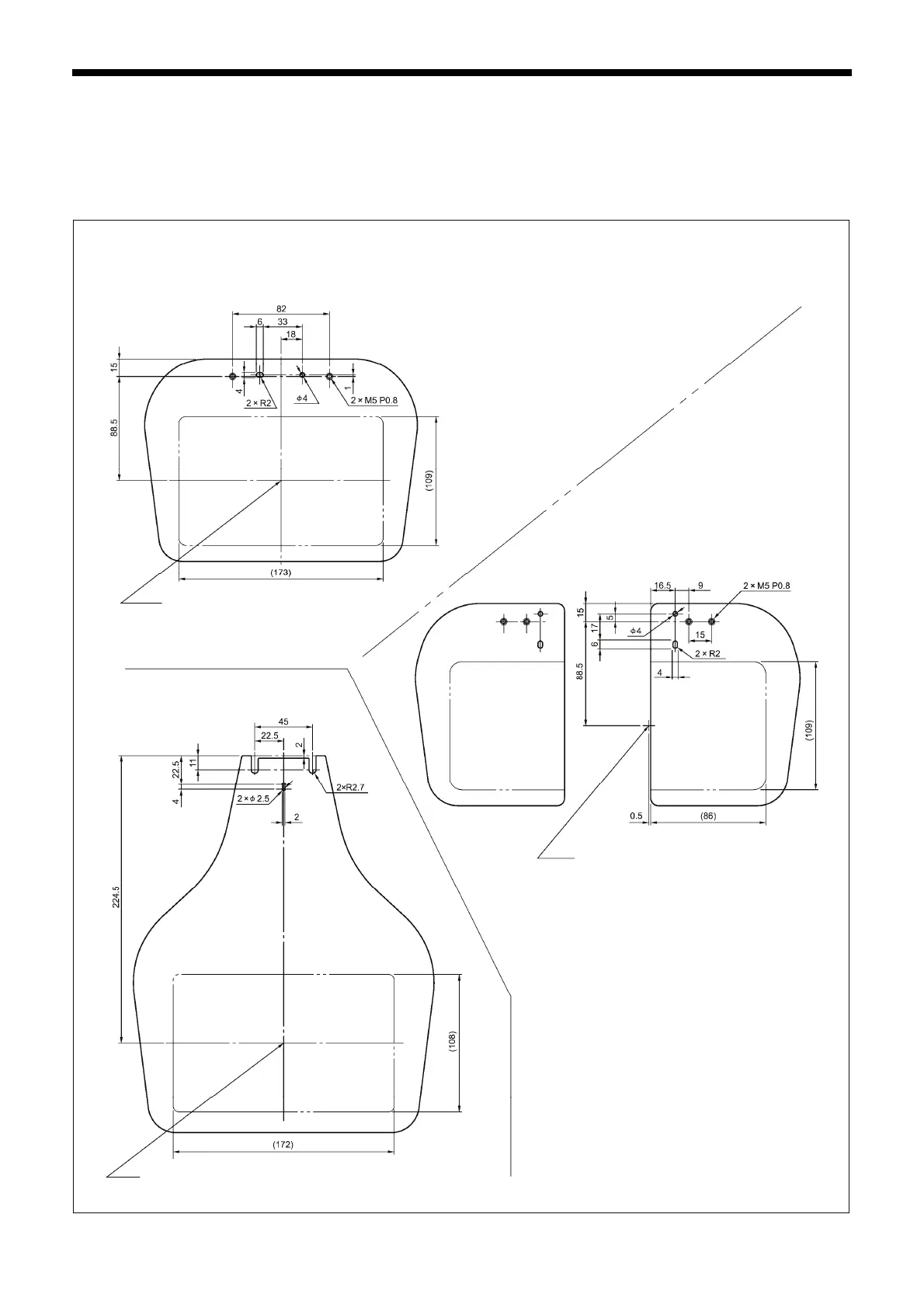

Process the work clamps and feed plate which match the sewing pattern, while referring to the processing diagram below.
* Values in ( ) are the recommended sizes when sewing using the maximum area (BAS-311HN: 150x100 mm, BAS-326H:
220x100 mm).
BAS-311HN
<Work clamp processing diagram>
Motor-driven work clamp specifications
Center of sewing area
[mm]
3159B
Center of sewing area
Pneumatic work clamp specifications
The left and right work clamps are symmetrical.
Center of sewing area
[mm]
[mm]
<Feed plate processing diagram>
Recommended thickness 1.5 mm
