3. INSTALLATION
BAS-311HN, BAS-326H
13
3-8. Connecting the ground wire
CAUTION
Be sure to connect the ground. If the ground connection is not secure, you run a high risk of receiving a serious electric
shock, and problems with correct operation may also occur.

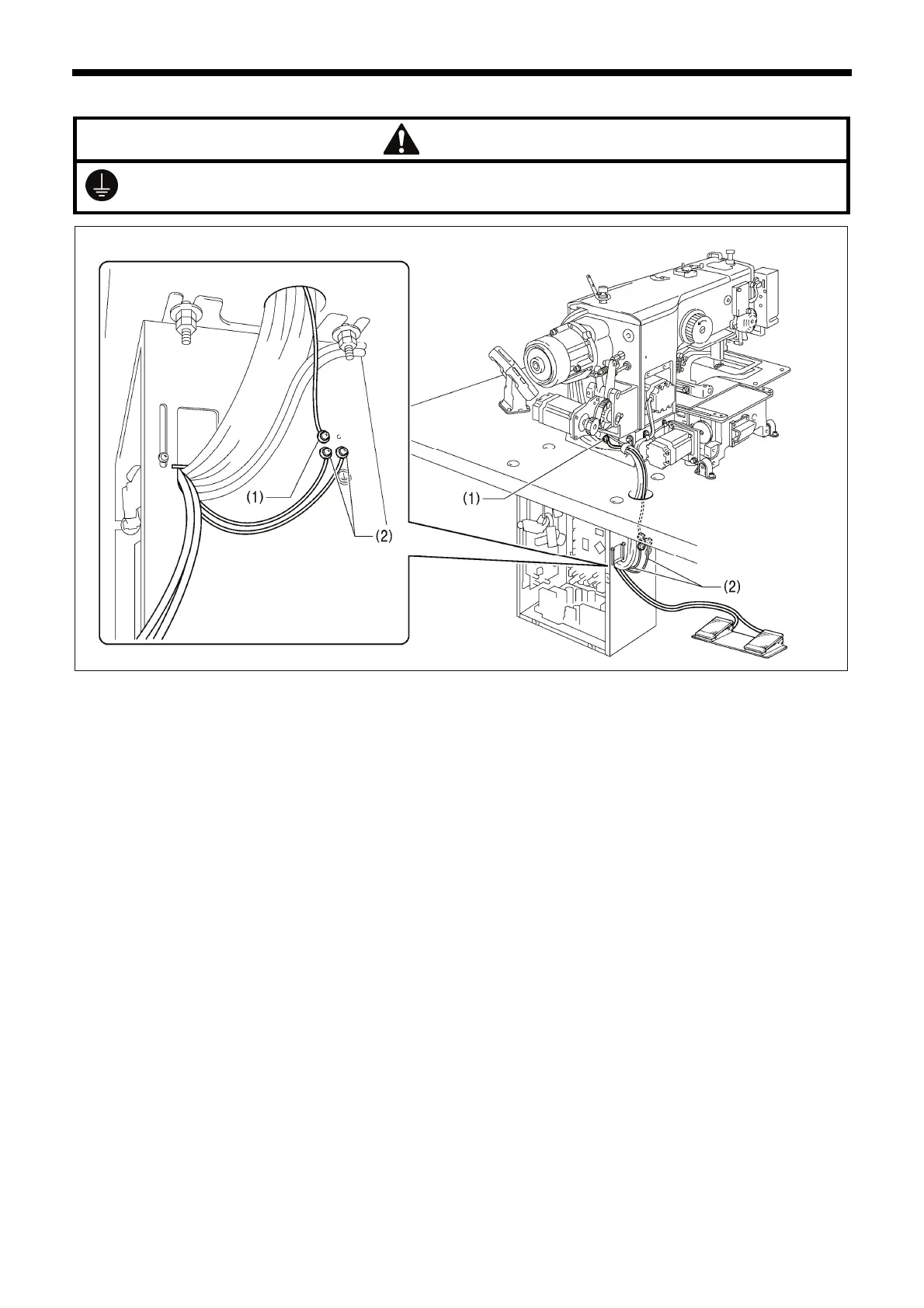

(1) Ground wire from the machine head
(2) Ground wires from two-pedal foot switch harnesses (2 wires)
• Tighten the control box cover with the six screws. Check that the cords are not clamped by the cover at this time.
NOTE: Make sure that the ground connections are secure in order to ensure safety.
3529B
To Next Page
