3. INSTALLATION
BAS-311HN, BAS-326H
19

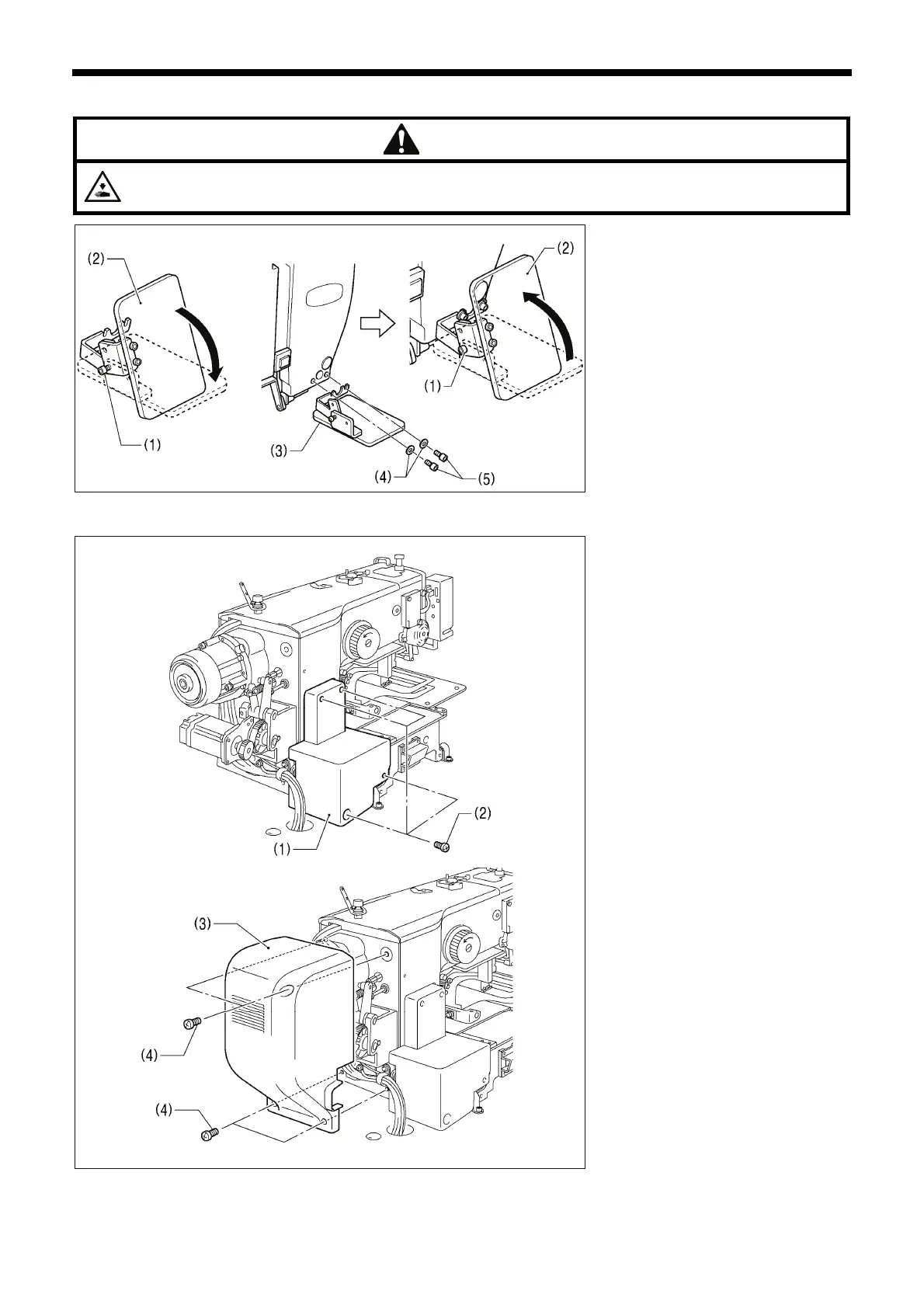

3-12. Installing the eye guard
CAUTION
Attach all safety devices before using the sewing machine.
If the machine is used without these devices attached, injury may result.
(1) Bolt (loosen)
(2) Eye guard (tilt forward)
(3) Eye guard assembly
(4) Plain washers [2 pcs.]
(5) Bolts [2 pcs.]
After installing the eye guard assembly
(3), return the eye guard (2) to its original
angle, and then tighten the bolt (1) to
secure it in place.
3-13. Installing the side cover and rear cover
(1) Side cover
(2) Screws [4 pcs.]
(3) Rear cover
(4) Screws [4 pcs.]
NOTE:
Be careful not to clamp the cords when
installing the side cover and the rear
cover.
3048B
3510B
3509B
