3. INSTALLATION
BAS-311HN, BAS-326H
7

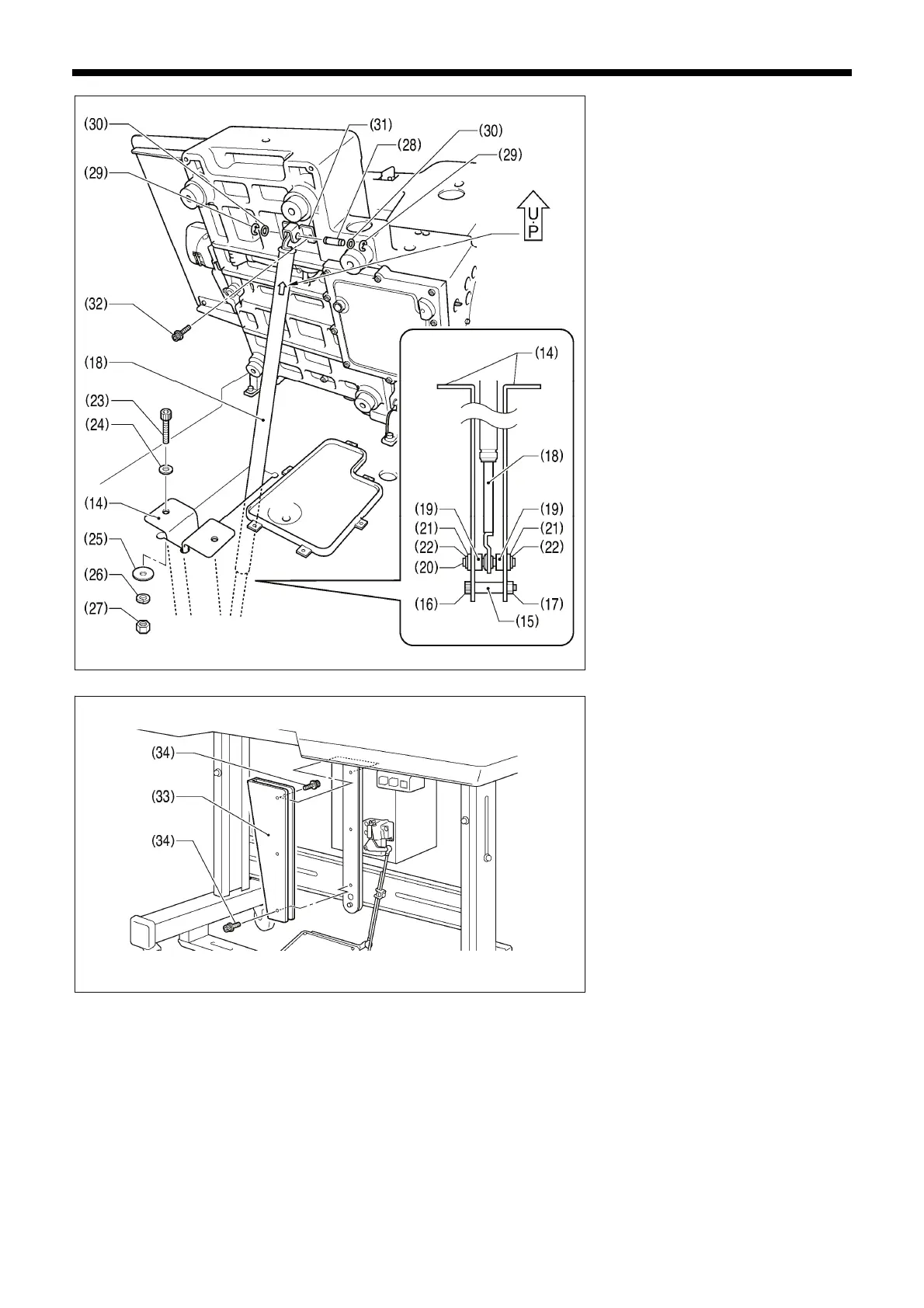

(14) Gas spring holders [2 pcs.]
(15) Spacer
(16) Bolt
(17) Nut
(18) Gas spring
(19) Shaft collars [2 pcs.]
(20) Gas spring shaft D
(21) Plain washers [2 pcs.]
(22) Retaining rings E [2 pcs.]
(23) Bolts [2 pcs.]
(24) Plain washers (medium) [2 pcs.]
(25) Plain washers (large) [2 pcs.]
(26) Spring washers [2 pcs.]
(27) Nuts [2 pcs.]
(28) Gas spring shaft U
(29) Retaining rings E [2 pcs.]
(30) Plain washers (small) [2 pcs.]
(31) Absorber setting plate
(32) Bolts with washer [2 pcs.]
(33) Gas spring support cover
(34) Bolts with washer [6 pcs.]
3534B
3535B
Be sure to
install so that
the side with
“UP” on it is
facing upward.
To Next Page
