3. INSTALLATION
BAS-311HN, BAS-326H
15
<200 V system >

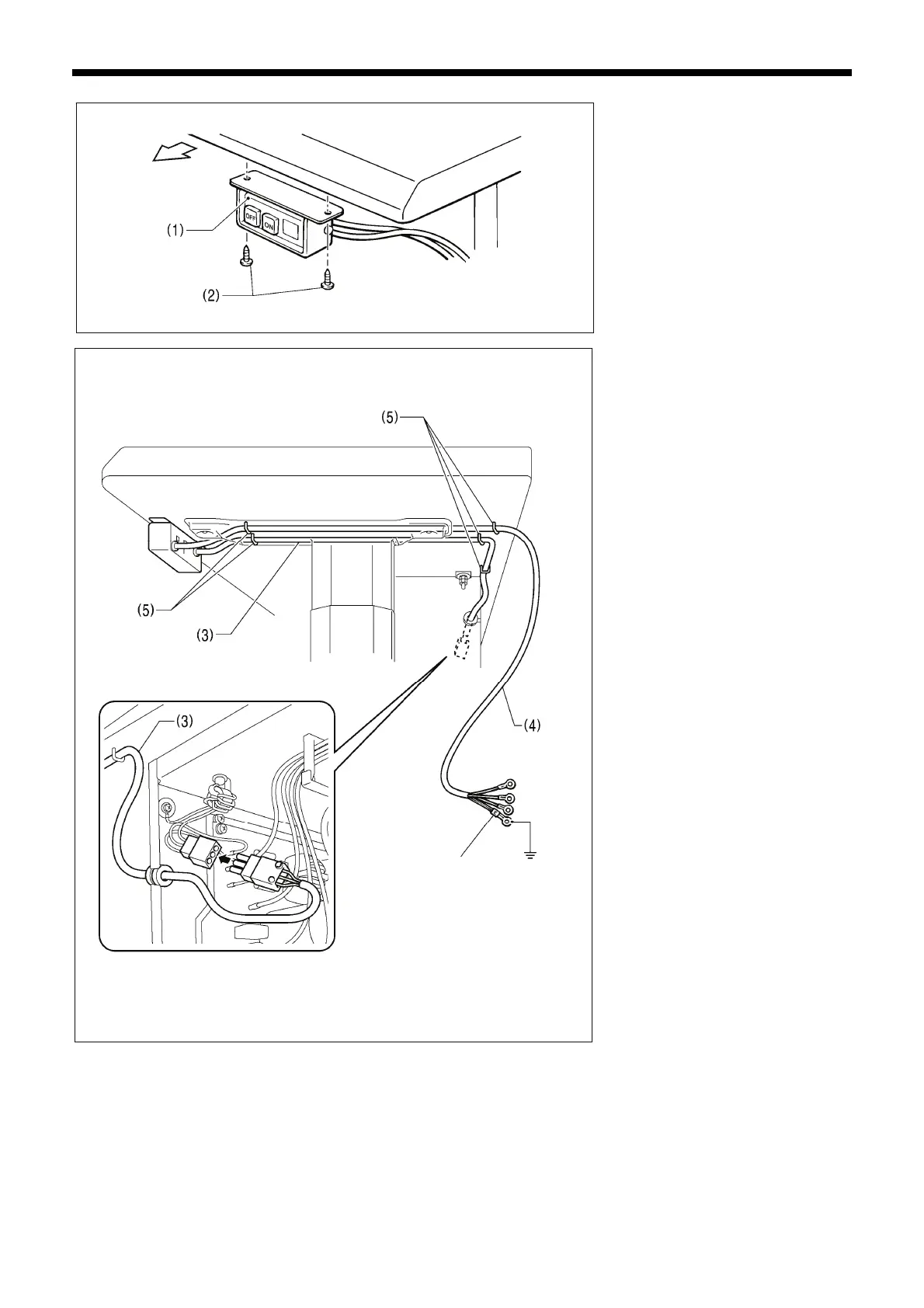

(1) Power switch
(2) Wood screws [2 pcs.]
(3) 3-pin power supply connector
(4) Power cord
(5) Staples [5 pcs.]
1. Attach an appropriate plug to the
power cord (4). (The green and yellow
wire is the ground wire.)
2. Insert the power plug into a
properly-grounded electrical outlet.
NOTE:
• Take care when tapping in the staples
(5) to make sure that they do not pierce
the cords.
• Do not use extension cords, otherwise
machine operation problems may
result.
3. Use the six screws to tighten the cover
of the control box. Check that none of
the cords are being clamped by the
cover at this time.
3146B
3638B
Green and yellow wire
(ground wire)
Operator
To Next Page
