4. PREP
ARA
TI
ON BEFORE SEWING
26
BAS-31
1HN, BAS-326H

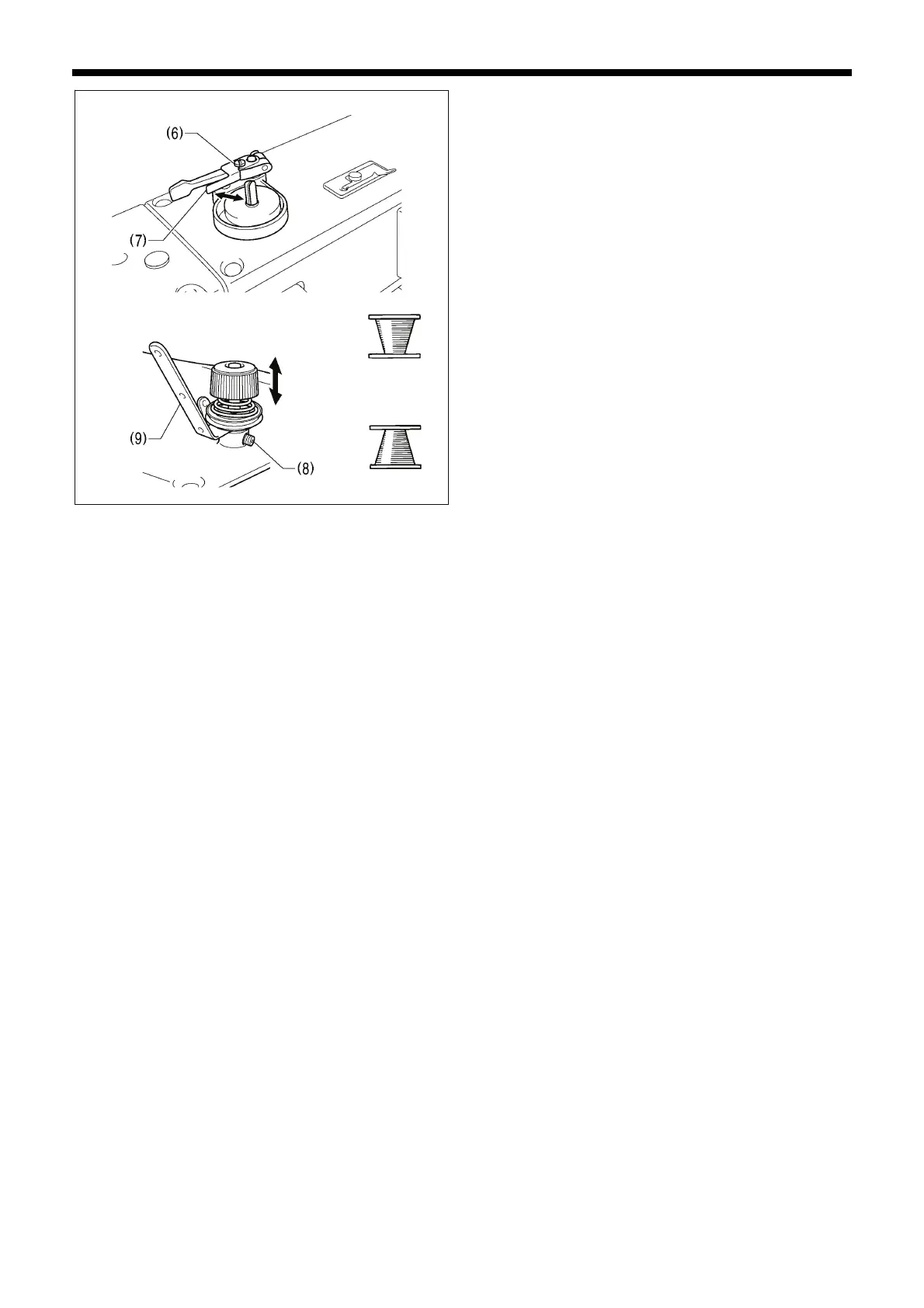

Adjusting the bobbin wind
ing amount
Loosen the screw (6) and move the bobbin presser (7).
If the thread winds onto the bobbin un
evenly
Loosen the set screw (8) and move
the bobbin winder
tension assembly (9) up and down to adjust.
*
For case A, move the bobbin w
inder tension assembly
(9) down, and for case B, move it upward.
3684B
3683B
Case B
Case A
33
35
