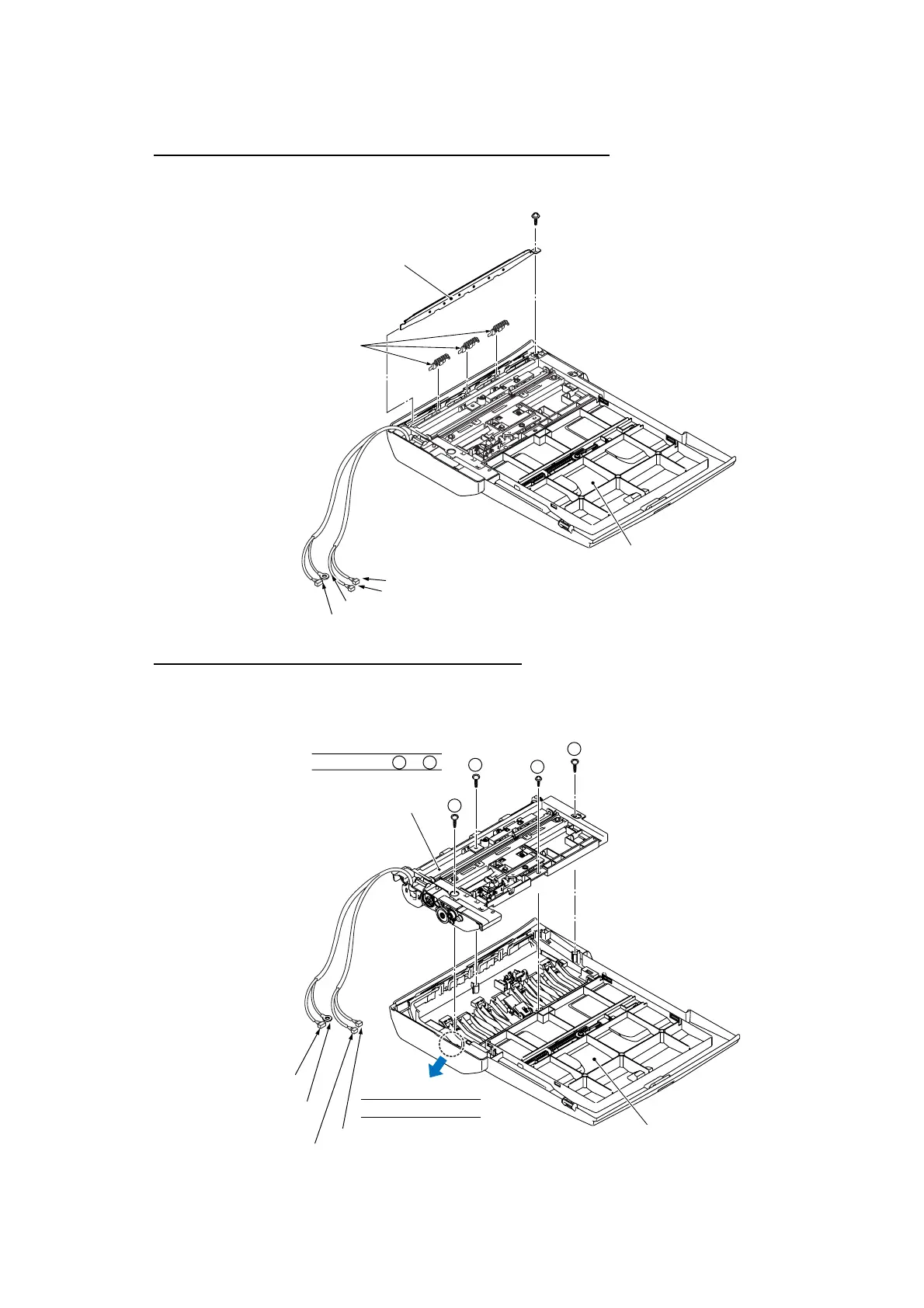

ADF reinforcement plate and pinch roller & spring assemblies
(8) Remove the screw that secures the ADF reinforcement plate and pull out the plate.
(9) Remove the three pinch roller & spring assemblies.
(6_16)
ADF & document cover ASSY
Taptite, cup B M3x8
ADF reinforcement plate
Pinch roller & spring assemblies
(Rear)
ADF motor harness
Grounding wire
Document rear sensor harness
Document front sensor harness
Separating the ADF unit from the document cover
(10) Remove four screws (three "a" and one "b" screws) from the ADF unit.
(11) Pull the rear side of the document cover outwards and take the ADF unit out of the document
cover.
(6_17)
ADF motor harness
Grounding wire
Document rear sensor harness
Document front sensor harness
(Rear)
ADF unit
"a"
Pull here outwards to
release the ADF unit
Document cover
1
2
3
4
"a"
"a"
"b"
Tighten these screws
in the order of 1 to 4 .
"a": Taptite, bind B M4x12
"b": Taptite, cup B M3x8
