6-42 Confidential
Head cover

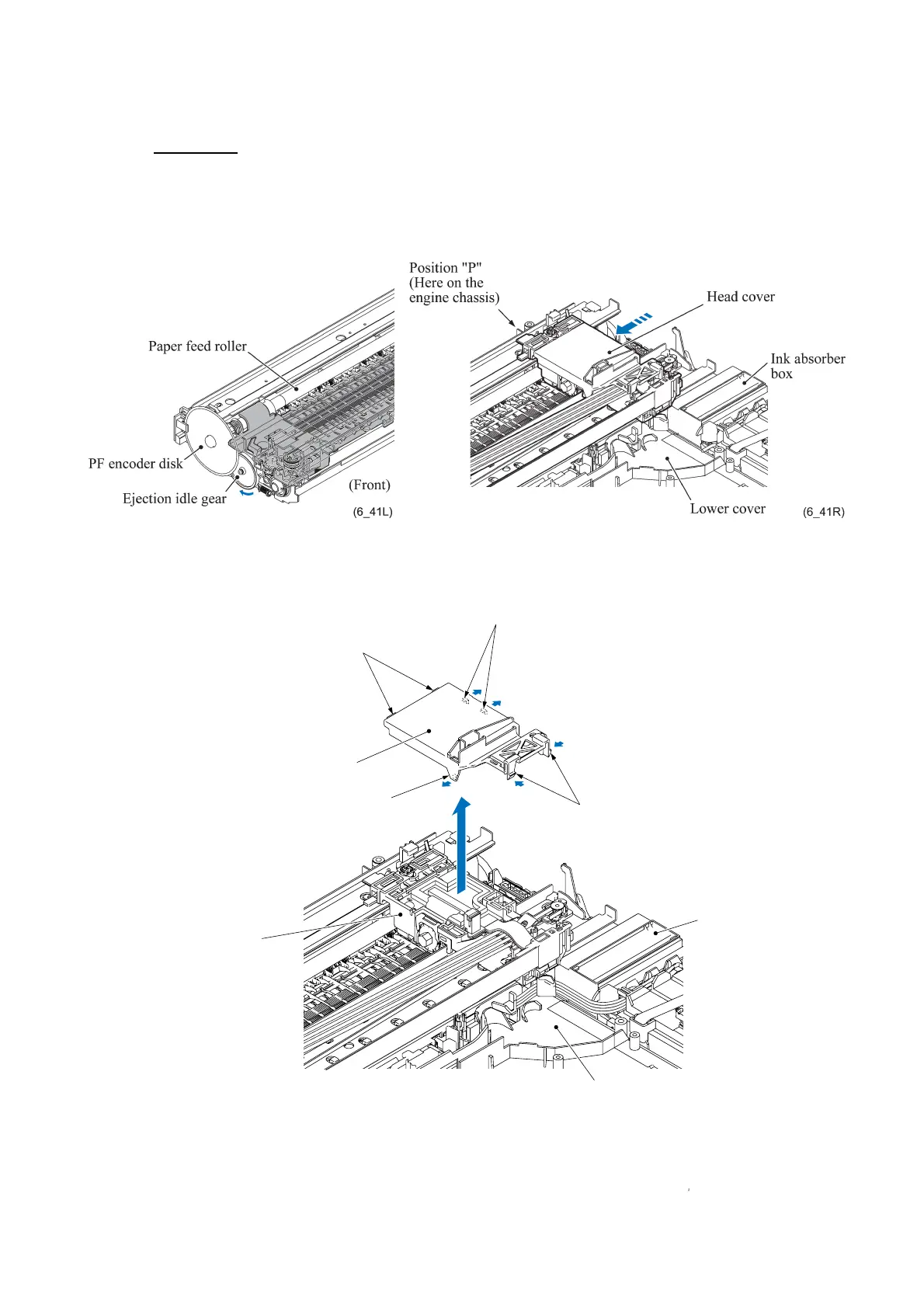

(8) Move the head/carriage unit to position "P" (shown below) by hand.
NOTE: If the head/carriage unit does not move, rotate the ejection idle gear clockwise (viewed
from the left) by hand to unlock the head/carriage unit and move it to position "P."
(9) Unlatch the head cover from the head/carriage unit and pull it up.
Lower cover
(6_42)
Ink absorber box
Latches
Tabs
Head cover
Latch
Head/carriage unit
Latches
