Brother MFC-7320 Service Manual

3-25
Confidential
8.4.3 EJECT ROLLER ASSY 1 / BUSH C / BUSH R / BUSH L
(1) Release the Hook of the Bush C from the Fuser cover ASSY.
(2) Remove the Eject roller ASSY 1 from the Fuser cover ASSY.

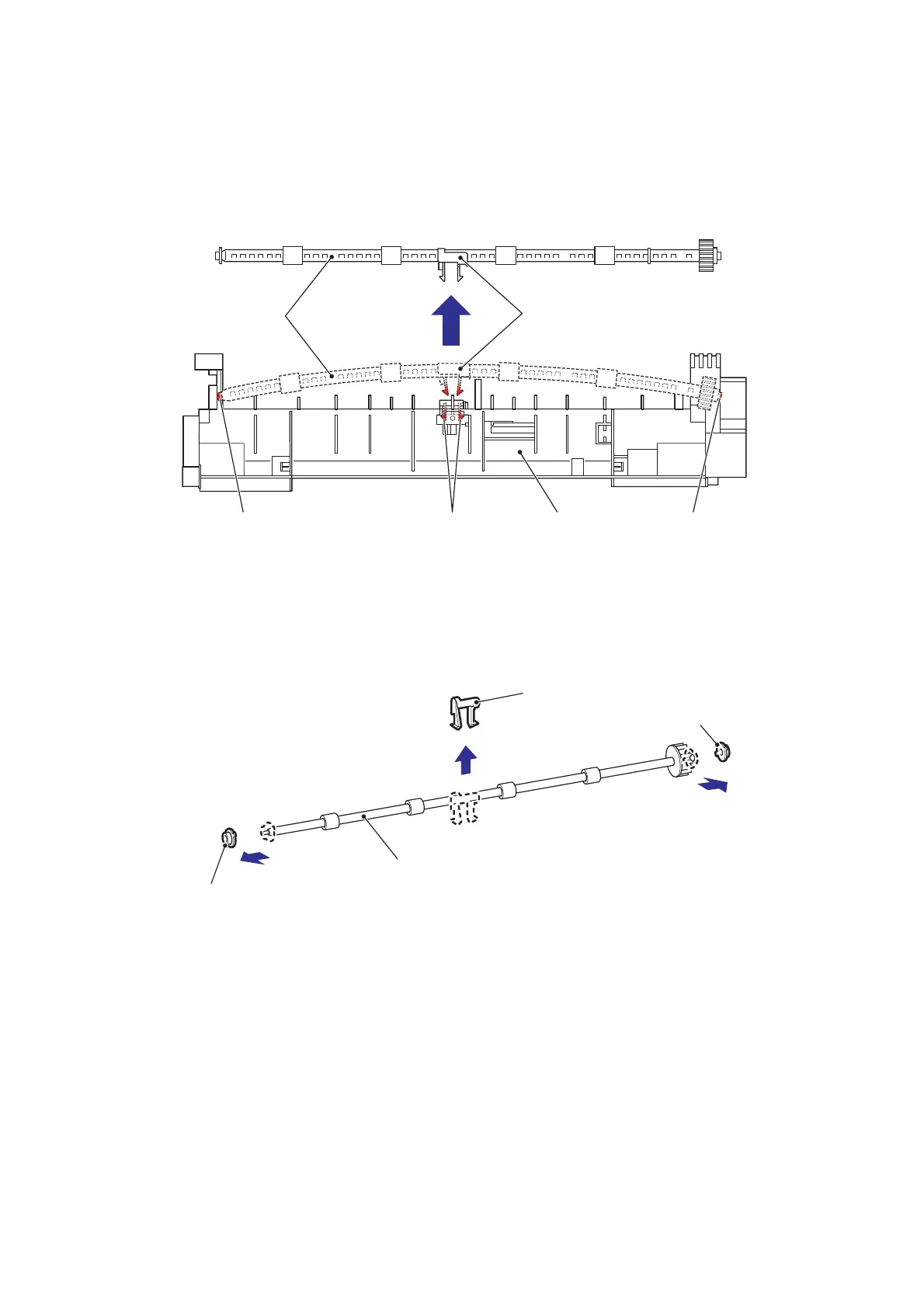

Fig. 3-16
(3) Remove the Bush C, the Bush R and the Bush L from the Eject roller ASSY 1.
Fig. 3-17
Eject roller ASSY 1
Bush C
Hook
Fuser cover ASSYBoss Boss
Bush L
Bush R
Bush C
Eject roller ASSY 1
