3-5
Confidential
4. LUBRICATION

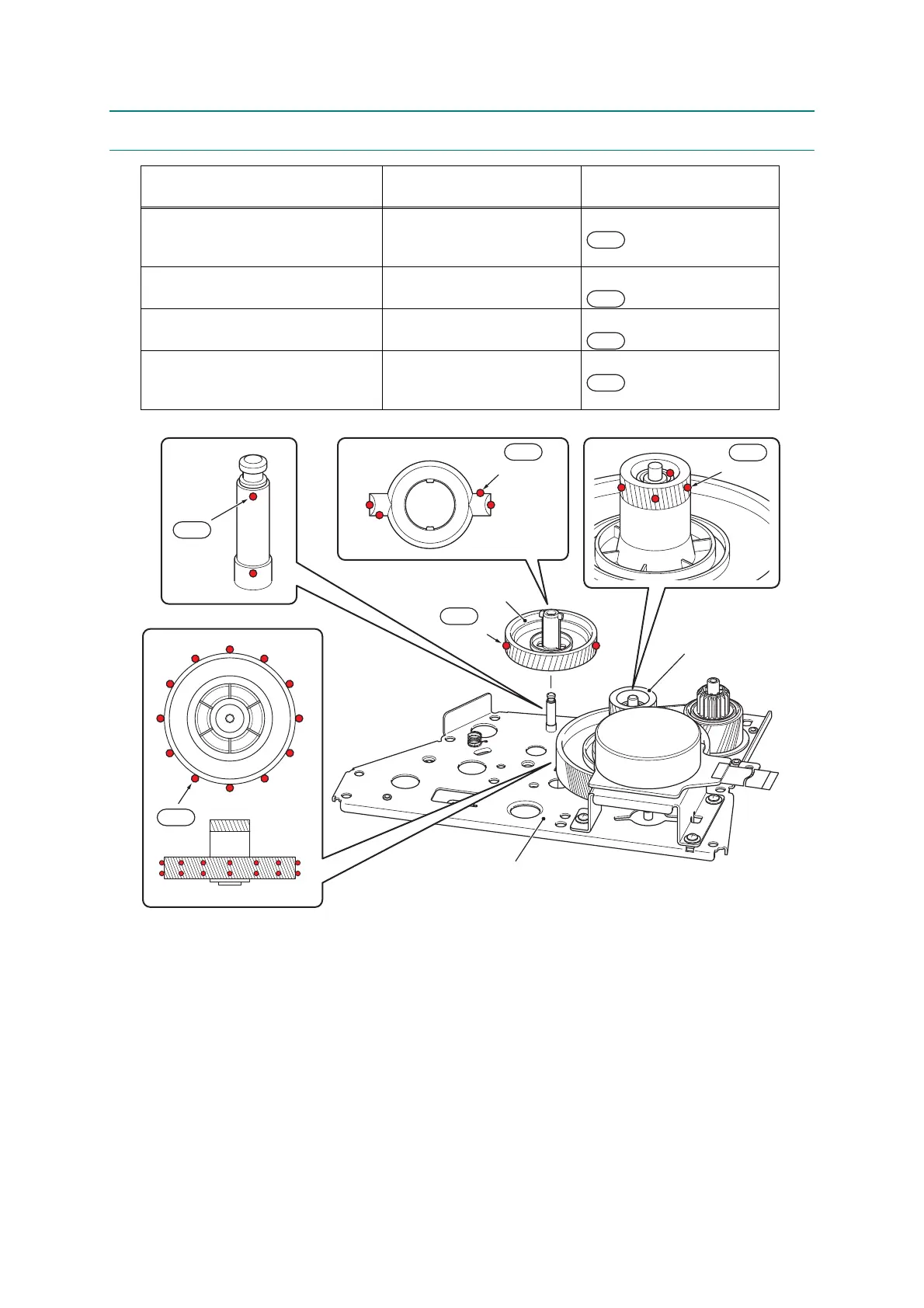

Fig. 3-2
The kind of the lubricating oil
(Maker name)
Lubrication point Quantity of lubrication
FLOIL BG-MU
(Kanto Kasei)
Dev gear joint/53R
Drive sub ASSY
Drum gear 25L/139L
2mm dia. ball
MOLYKOTE EM-D110
(Dow Corning Toray)
Separation pad ASSY 2mm dia. ball
BDX313(A)
(Kanto Kasei)
Hinge ASSY L 2mm dia. ball
FLOIL GE-676
(Kanto Kasei)
LF roller ASSY
Ejection roller ASSY
Drive frame ASSY
2mm dia. ball
BG2
EM2
BD2
GE2
DEV gear
joint / 53R
BG2
2 places
BG2
4 places
BG2
2 places
Drive sub ASSY
BG2: KLOIL BG-MU (2mm dia. ball)
Drum gear 25L/139L
BG2
4 places
BG2
24 places
