Brother MFC-7320 Service Manual

1-26
Confidential
3.7 Curl in the paper
(1) Turn the Nip release lever of right and left to the direction of the arrow.
(2) Hold and turn the PR stopper plate of right and left.
(3) Print it again, and check that the curl in the paper occurs.
(4) When there seems to be still the curl, replace the position of the pressure roller again.

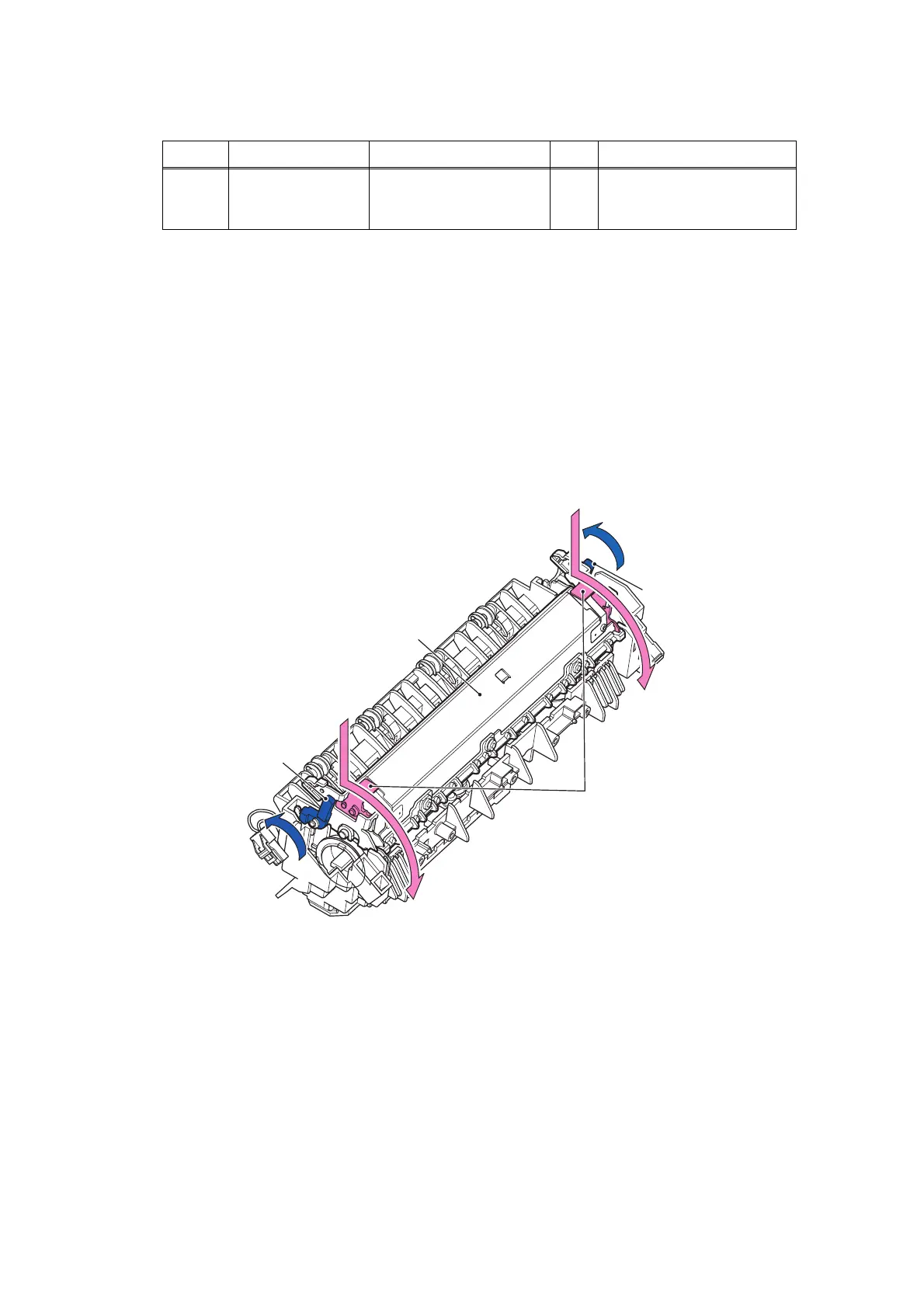

Fig. 1-4
Step Cause Check Result Remedy
1
Fuser unit
pressure is high
Is the problem solved by
changing the position of
the pressure roller?
Ye s
Change the position of the
pressure roller.
NIP RELEASE LEVER
NIP RELEASE LEVER
PR STOPPER PLATE
PRESSURE ROLLER
2
2
1
1
1
1
