3-61

Confidential

(5) Unlock the lock to disconnect the LCD flat cable from the relay PCB ASSY.

(6) Unlock the lock to disconnect the LCD relay flat cable from the LCD relay PCB ASSY.

(7) Release the hook, and remove the LCD relay PCB ASSY from the LCD presser.

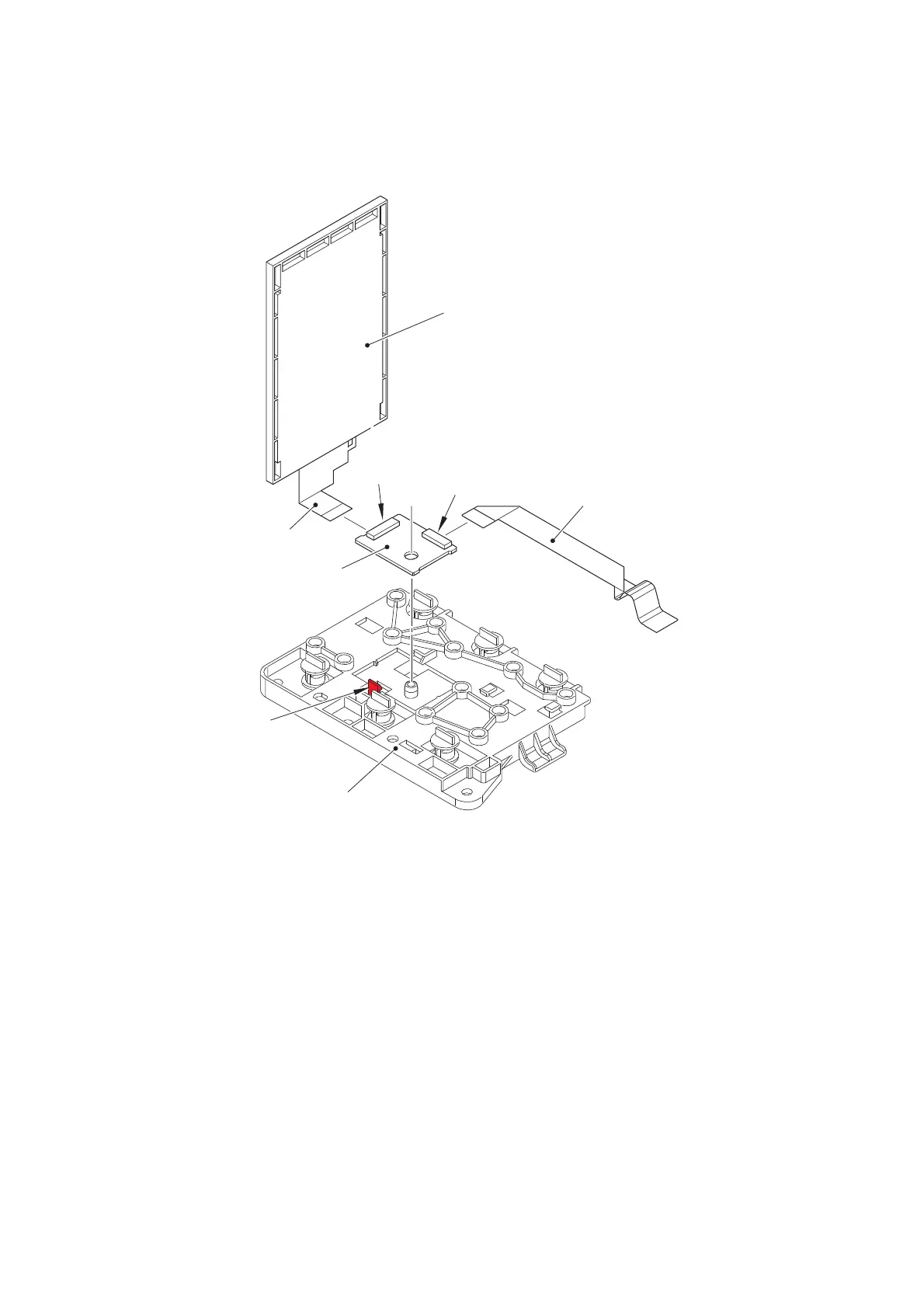

Fig. 3-55

Harness routing: Refer to “7. Panel unit (3.7 inch model)”.

LCD

Lock

LCD relay flat cable

LCD relay PCB ASSY

Hook

LCD presser

LCD flat cable
