3-84
Confidential
(4) Remove the screw pan M4x8 screw, washer spring 2-4, and washer 5 to remove the
ground harness.
(5) Remove the taptite flat B M3x10 screw, and remove the inlet.

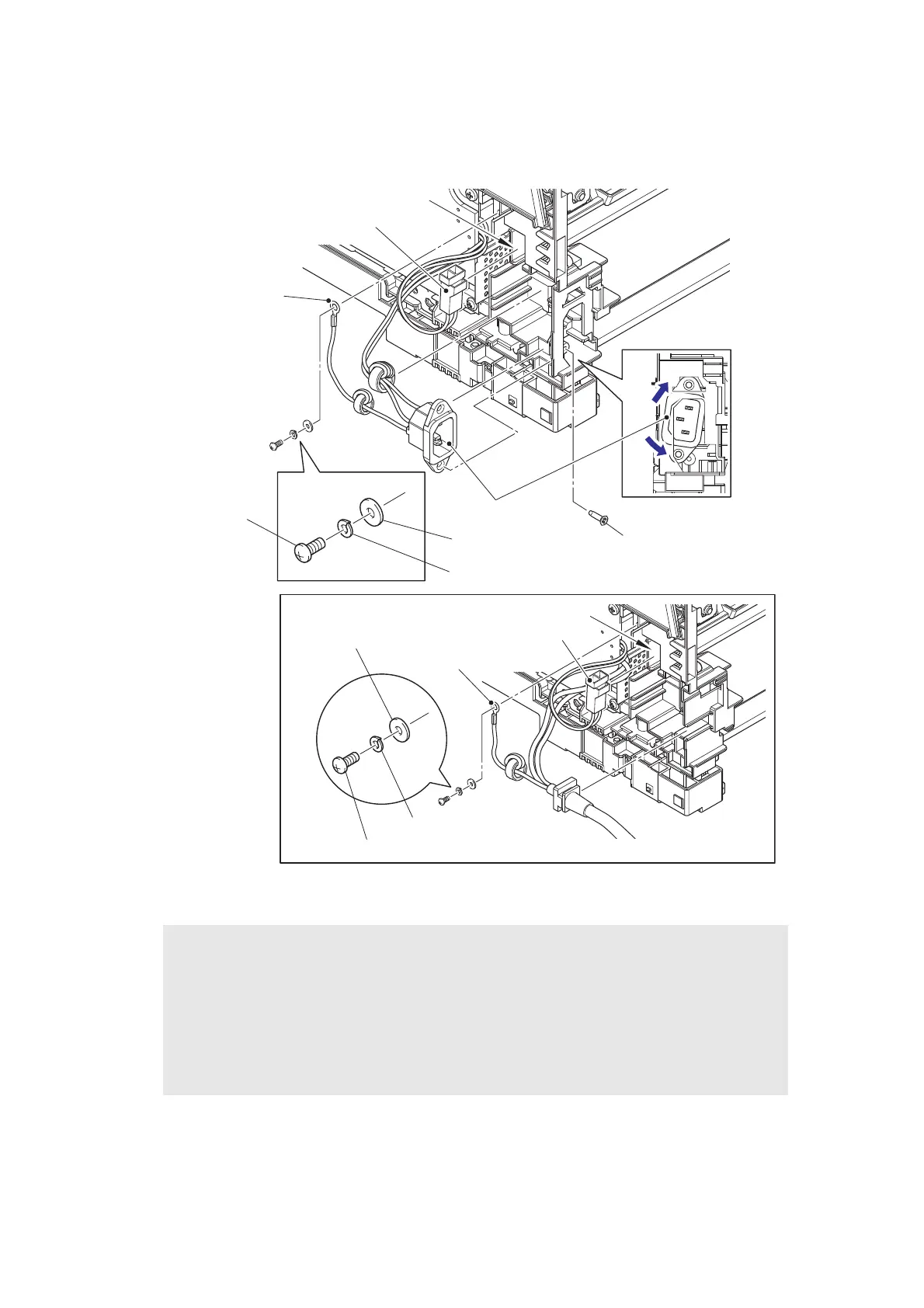

Fig. 3-83
Assembling Note:
• Attach the inlet as shown in the figure above.
• Insert the heater harness into the housing.
• For safety purposes, attach the washer spring 2-4 and washer 5 securely at positions
described in the figure above.
• For safety purposes, perform the harness routing properly as described in "11. Rear
side of the machine".
Screw pan M4x8
Washer 5
Washer spring 2-4
Housing
Ground harness
Taptite flat B M3x10
Inlet
1
2
Heater harness
Housing
Heater harness
<For models with China>
Ground harness
Washer 5
Washer spring 2-4
Screw pan M4x8
To Next Page
